G903A (Standard) Connector End View (G903A)

Harness-Family: Transmission

Color: NA

Gender: FEMALE

Part Number: R8655

Part Description: Not Available

Connector No: G903A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

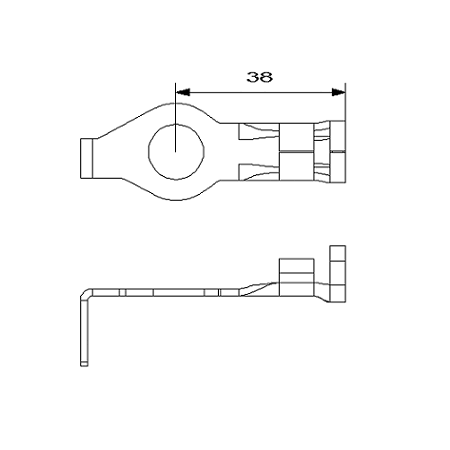

Fig 1: G903a Connector End View (Standard)
GCWD1238048Courtesy of CHRYSLER

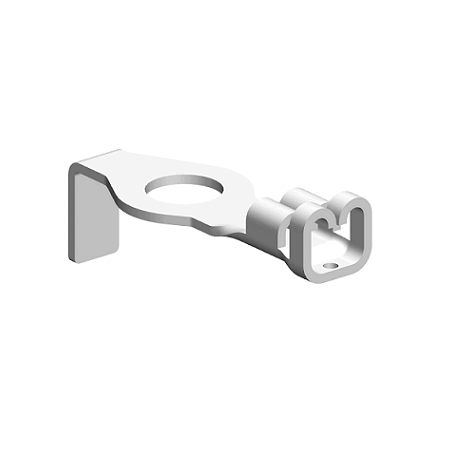

Fig 2: G903a Isometric View (Standard)
GCWD1318228Courtesy of CHRYSLER

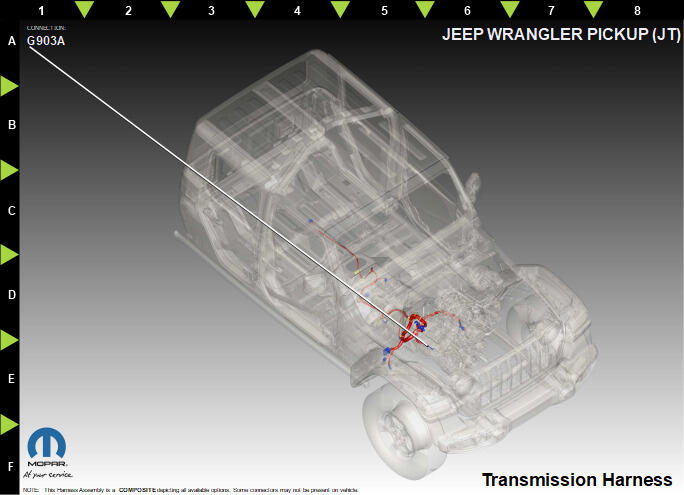

Fig 3: G903a Component Location View (Standard)
GCWD1319098Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z903 BK 35.0 GROUND N/A
