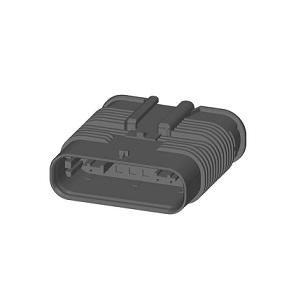

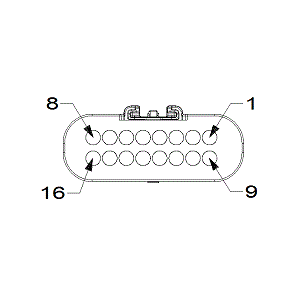

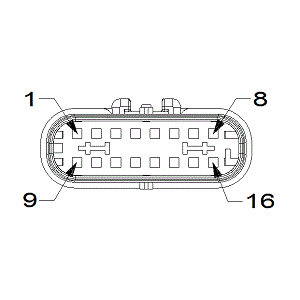

XY801A (Standard) Connector End View (Y801A)
Harness-Family: Chassis_RT
Color: BLACK
Gender: MALE
Part Number: 807-446-501
Part Description: Not Available
Connector No: Y801A
Option: Standard
Repair Kit Part Number: 68496389AB
Cavity Count: 16
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | L9 | YE | 0.75 | LEFT STOP/TURN FEED | EXCEPT EXPORT |
| 1 | L52 | WH | 1.0 | LEFT STOP LAMP DRIVER | EXPORT |
| 2 | L145 | WH/OG | 0.75 | LEFT SIDE MARKER CONTROL | N/A |
| 3 | L563 | WH/GY | 0.35 | LEFT REAR LIGHTING FAULT SENSE | N/A |
| 4 | F923 | PK/YE | 0.35 | RUN RELAY CONTROL | N/A |
| 5 | D215 | DB/WH | 0.35 | CAN IHS (+) | N/A |
| 6 | D216 | WH | 0.35 | CAN IHS (-) | N/A |
| 7 | L63 | WH/DG | 0.75 | LEFT REAR TURN LAMP DRIVER | N/A |
| 8 | L15 | WH/BG | 0.75 | LEFT BACKUP LAMP DRIVER | N/A |
| 9 | L71 | WH/GY | 0.75 | LEFT REAR PARK LAMP DRIVER | N/A |
| 10 | L19 | BG/WH | 0.50 | CARGO LAMP DRIVER | N/A |
| 11 | L51 | WH/DG | 0.35 | BRAKE LAMP SWITCH OUTPUT | N/A |
| 12 | N0 | NA | 0 | NO CONNECT | N/A |
| 13 | P221 | GN/BG | 1.0 | TAILGATE LOCK | N/A |
| 14 | P220 | GN/WH | 1.0 | TAILGATE UNLOCK | N/A |
| 15 | P711 | GN | 0.35 | LEFT BLIND SPOT INDICATOR DRIVER | N/A |
| 16 | Z925 | BK/GY | 0.75 | GROUND | N/A |
