XY708A (Standard) Connector End View (Y708A)

Harness-Family: PICKUP_BED_RIGHT

Color: BLACK

Gender: MALE

Part Number: 872-863-561

Part Description: Not Available

Connector No: Y708A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Xy708a Connector End View (Standard)
GCWD1237507Courtesy of CHRYSLER

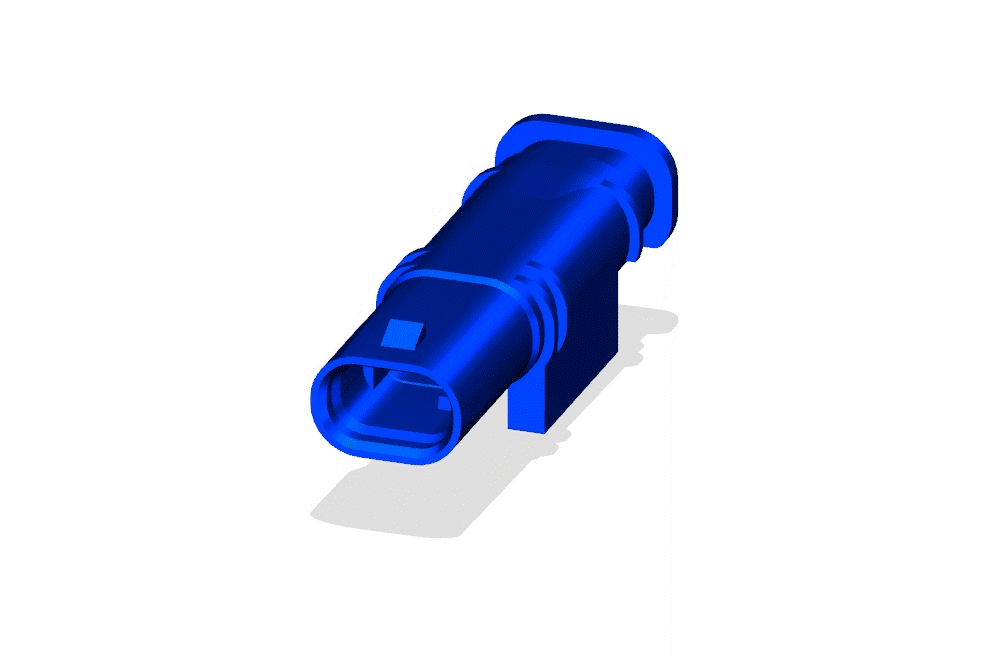

Fig 2: Xy708a Isometric View (Standard)
GCWD1318350Courtesy of CHRYSLER
Fig 3: Xy708a Wire Insertion View (Standard)
GCWD1009666Courtesy of CHRYSLER

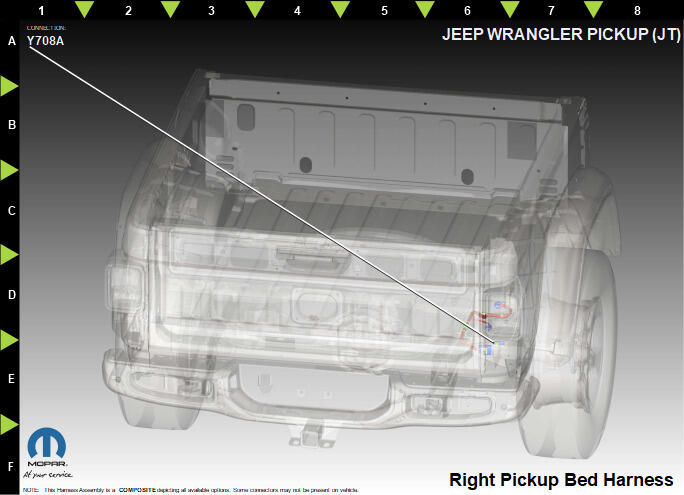

Fig 4: Xy708a Component Location View (Standard)
GCWD1318883Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L19 BG/WH 0.50 CARGO LAMP DRIVER N/A
2 Z926 BK 0.75 GROUND N/A
