XY700A (Standard) Connector End View (X700A)

Harness-Family: Door_Rear_Left

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-6448-40

Part Description: Not Available

Connector No: X700A

Option: Standard

Repair Kit Part Number: 68068651AA

Cavity Count: 8

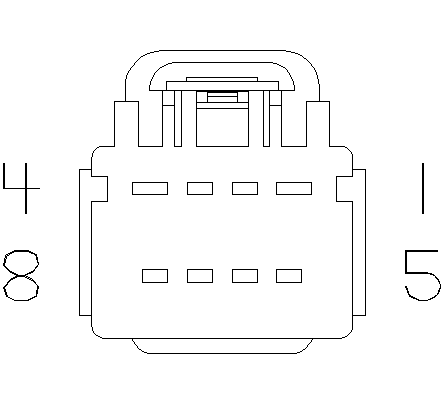

Fig 1: Xy700a Connector End View (Standard)

GCWD1006346

Courtesy of CHRYSLER

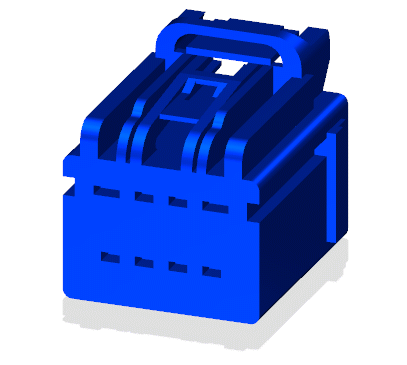

Fig 2: Xy700a Isometric View (Standard)

GCWD1087407

Courtesy of CHRYSLER

Fig 3: Xy700a Wire Insertion View (Standard)

GCWD1008579

Courtesy of CHRYSLER

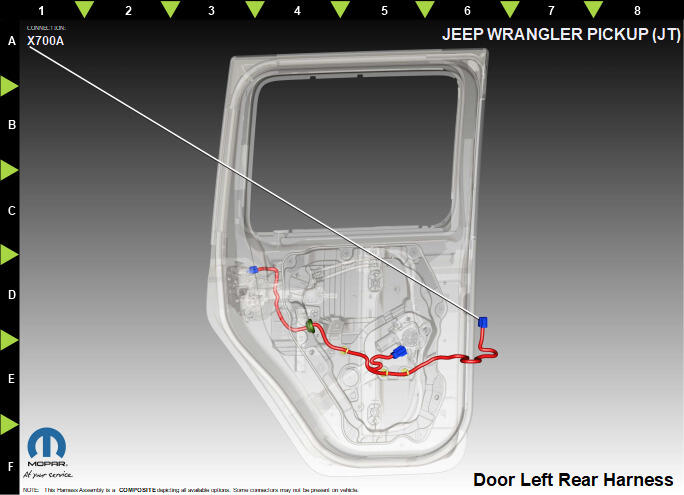

Fig 4: Xy700a Component Location View (Standard)

GCWD1318351

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q111	BG/YE	2.0	DRIVER REAR WINDOW DRIVER (UP)	N/A
2	P292	VT/GN	0.80	DOOR UNLOCK CONTROL	N/A
3	P777	GN/DG	0.80	DOOR LOCK CONTROL	N/A
4	Q211	BG/BU	2.0	DRIVER REAR WINDOW DRIVER (DOWN)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	G77	VT/GY	0.35	LEFT REAR DOOR AJAR SWITCH SENSE	N/A
7	P371	BG/BN	0.35	DOOR LOCK SW RTN DRIV	N/A
8	N0	NA	0	NO CONNECT	N/A
