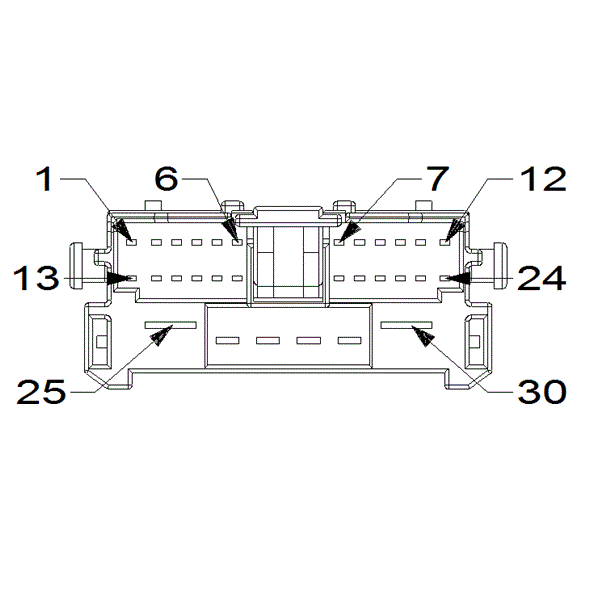

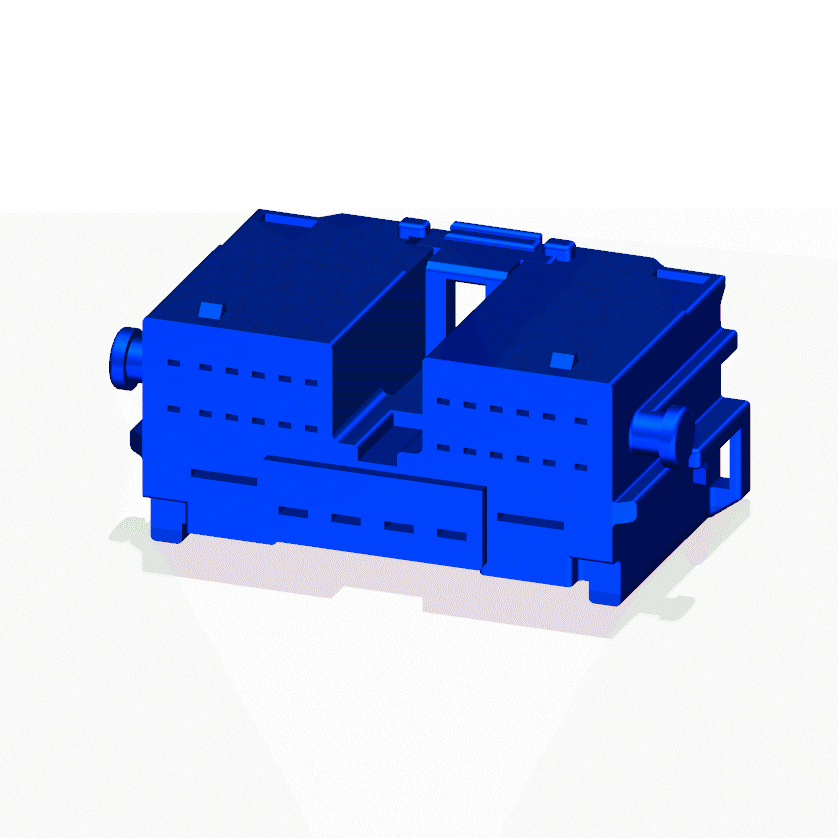

XY650A (Standard) Connector End View (X650A)

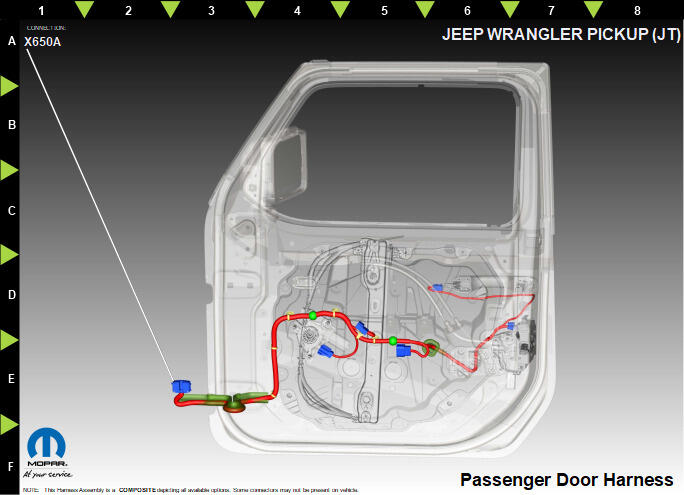

Harness-Family: Door_Pass

Color: BLACK

Gender: FEMALE

Part Number: 7289-3185-30

Part Description: Not Available

Connector No: X650A

Option: Standard

Repair Kit Part Number: 68500855AA

Cavity Count: 30

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	C110	DB/BU	0.50	MIRROR HEATER DRIVER	N/A
3	E12	OG/GY	0.75	PANEL LAMPS DRIVER	N/A
4	N0	NA	0	NO CONNECT	N/A
5	G160	VT/GN	0.75	RIGHT DOOR LOCK SWITCH STATUS	N/A
6	N0	NA	0	NO CONNECT	N/A
7	L160	WH/BG	0.50	TURN SIGNAL CONTROL	LHD
7	L161	WH/GN	0.50	TURN SIGNAL CONTROL	RHD
8	M5	WH/GN	0.75	AMBIENT LIGHTING CONTROL	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	P72	BG/GY	0.50	PASSENGER MIRROR VERTICAL DRIVER	N/A
12	Z910	BK	0.75	GROUND	N/A
13	N0	NA	0	NO CONNECT	N/A
14	P76	BG/BU	0.50	MIRROR COMMON DRIVER	N/A
15	P401	GN/VT	0.75	RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN	N/A
16	P400	GN/OG	0.75	RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE	N/A
17	P372	BG/OG	0.50	DOOR LOCK SW RTN PASS	N/A
18	G74	VT/WH	0.50	PASSENGER DOOR AJAR SWITCH SENSE	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	P712	GN/WH	0.50	RIGHT BLIND SPOT INDICATOR DRIVER	LHD
21	P711	GN	0.50	LEFT BLIND SPOT INDICATOR DRIVER	RHD
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	P74	BG/OG	0.50	PASSENGER MIRROR HORIZONTAL DRIVER	N/A
25	Q12	OG/BN	2.0	PASSENGER WINDOW DRIVER (UP)	N/A
26	P777	GN/DG	0.80	DOOR LOCK CONTROL	N/A
27	P292	VT/GN	0.80	DOOR UNLOCK CONTROL	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	Q22	OG/VT	2.0	PASSENGER WINDOW DRIVER (DOWN)	N/A
