XY620A (Standard) Connector End View (X620A)

Harness-Family: Door_Driver_2

Color: BLACK

Gender: MALE

Part Number: 33482-6201

Part Description: Not Available

Connector No: X620A

Option: Standard

Repair Kit Part Number: 68490386AA

Cavity Count: 12

Fig 1: Xy620a Connector End View (Standard)

GCWD1254962

Courtesy of CHRYSLER

Fig 2: Xy620a Isometric View (Standard)

GCWD1318337

Courtesy of CHRYSLER

Fig 3: Xy620a Wire Insertion View (Standard)

GCWD1318477

Courtesy of CHRYSLER

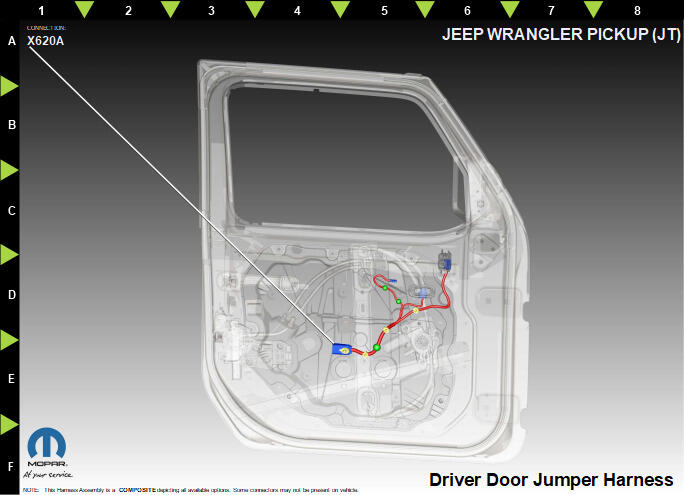

Fig 4: Xy620a Component Location View (Standard)

GCWD1318850

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P72	BG/GY	0.50	PASSENGER MIRROR VERTICAL DRIVER	N/A
2	P76	BG/BU	0.50	MIRROR COMMON DRIVER	N/A
3	P71	BG/DG	0.50	DRIVER MIRROR VERTICAL DRIVER	N/A
4	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
5	M5	WH/GN	0.75	AMBIENT LIGHTING CONTROL	N/A
6	F408	PK/GN	0.50	MIRROR SWITCH SUPPLY	N/A
7	Z911	BK	0.50	GROUND	N/A
9	P371	BG/BN	0.35	DOOR LOCK SW RTN DRIV	N/A
10	G161	VT/DG	0.35	LEFT DOOR LOCK SWITCH STATUS	N/A
11	P74	BG/OG	0.50	PASSENGER MIRROR HORIZONTAL DRIVER	N/A
12	P75	BG/GN	0.50	DRIVER MIRROR HORIZONTAL DRIVER	N/A
