XY511A (Standard) Connector End View (Y511A)

Harness-Family: Tailgate

Color: BLACK

Gender: MALE

Part Number: 7282-8850-30

Part Description: Not Available

Connector No: Y511A

Option: Standard

Repair Kit Part Number: 68490923AA

Cavity Count: 6

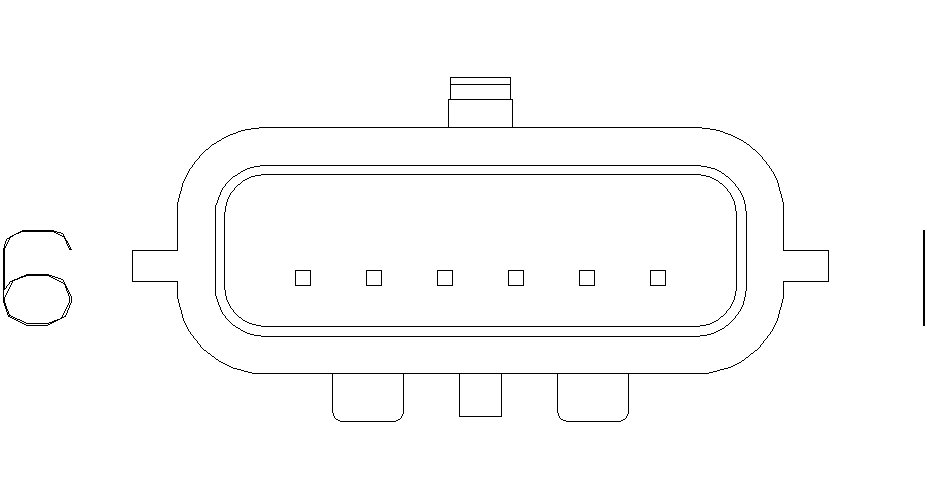

Fig 1: Xy511a Connector End View (Standard)

GCWD1084874

Courtesy of CHRYSLER

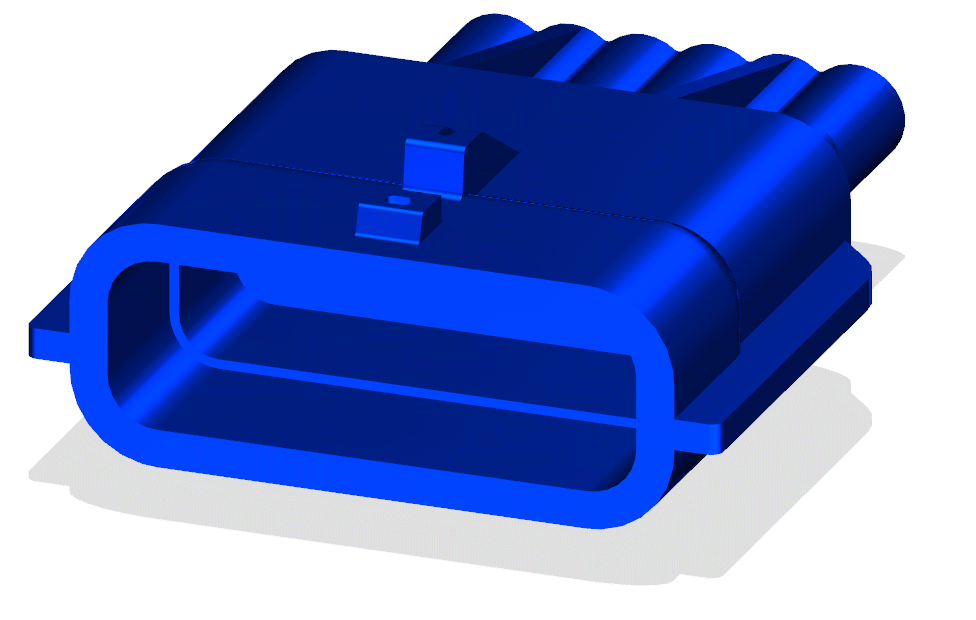

Fig 2: Xy511a Isometric View (Standard)

GCWD1082200

Courtesy of CHRYSLER

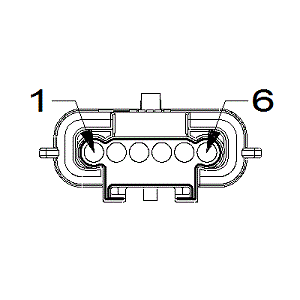

Fig 3: Xy511a Wire Insertion View (Standard)

GCWD1007553

Courtesy of CHRYSLER

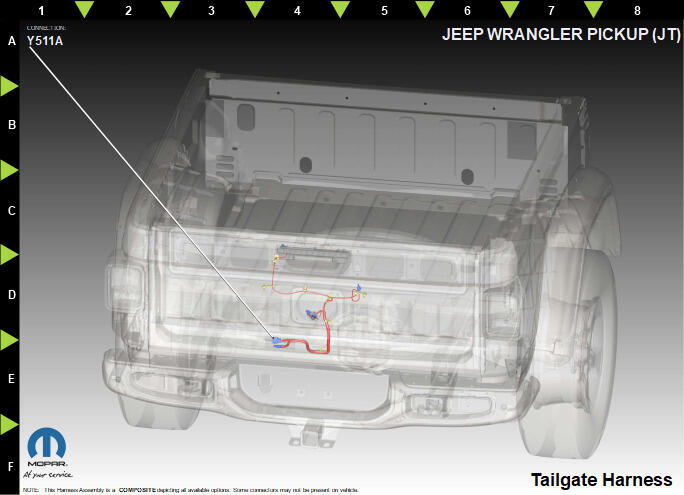

Fig 4: Xy511a Component Location View (Standard)

GCWD1318329

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	EXCEPT SPEED SENSITIVE LOCKS
1	P221	GN/BG	0.50	TAILGATE LOCK	SPEED SENSITIVE LOCKS
2	L51	WH/DG	0.50	BRAKE LAMP SWITCH OUTPUT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	Z925	BK/GY	0.50	GROUND	N/A
6	N0	NA	0	NO CONNECT	EXCEPT SPEED SENSITIVE LOCKS
6	P220	GN/WH	0.50	TAILGATE UNLOCK	SPEED SENSITIVE LOCKS
