XY511A (Standard) Connector End View (X511A)

Harness-Family: PICKUP_BED_LEFT

Color: BLACK

Gender: FEMALE

Part Number: 7283-8850-30

Part Description: Not Available

Connector No: X511A

Option: Standard

Repair Kit Part Number: 68490874AA

Cavity Count: 6

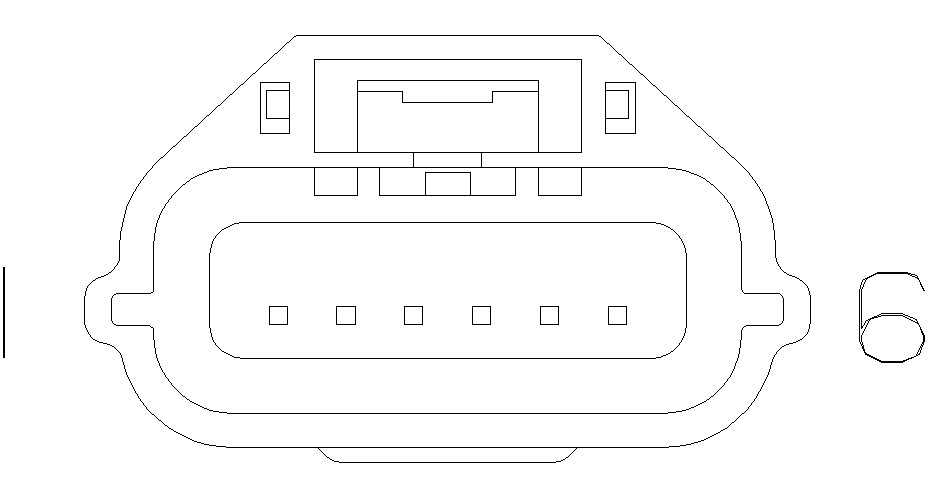

Fig 1: Xy511a Connector End View (Standard)

GCWD1091518

Courtesy of CHRYSLER

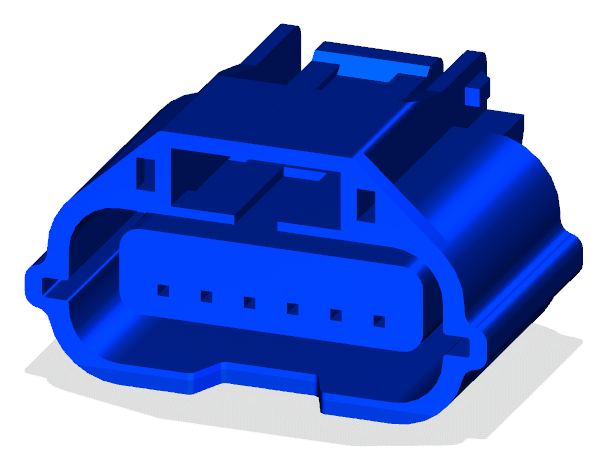

Fig 2: Xy511a Isometric View (Standard)

GCWD1082251

Courtesy of CHRYSLER

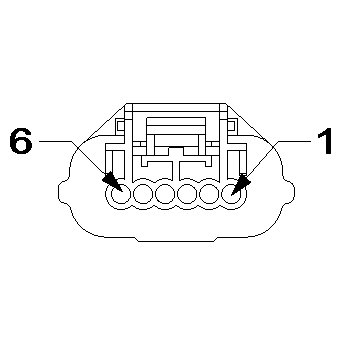

Fig 3: Xy511a Wire Insertion View (Standard)

GCWD1009165

Courtesy of CHRYSLER

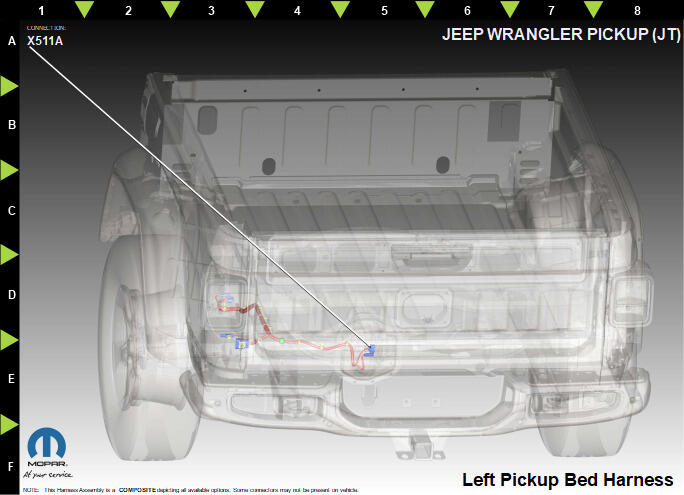

Fig 4: Xy511a Component Location View (Standard)

GCWD1318364

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P221	GN/BG	0.50	TAILGATE LOCK	N/A
2	L51	WH/DG	0.35	BRAKE LAMP SWITCH OUTPUT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	N0	NA	0	NO CONNECT	N/A
5	Z925	BK/GY	0.50	GROUND	N/A
6	P220	GN/WH	0.50	TAILGATE UNLOCK	N/A
