XY485A (Standard) Connector End View (X485A)

Harness-Family: PICKUP_BED_LEFT

Color: WHITE

Gender: FEMALE

Part Number: 59Z163-000-B_59Z163-000/51

Part Description: Not Available

Connector No: X485A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

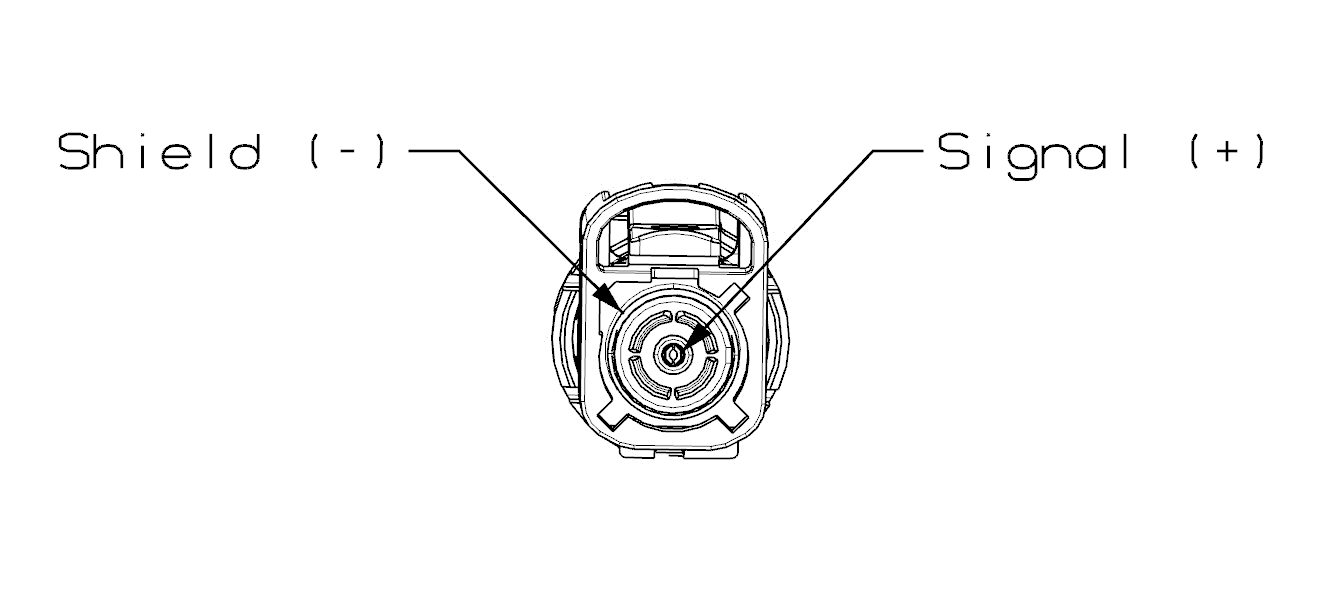

Fig 1: Xy485a Connector End View (Standard)

Courtesy of CHRYSLER

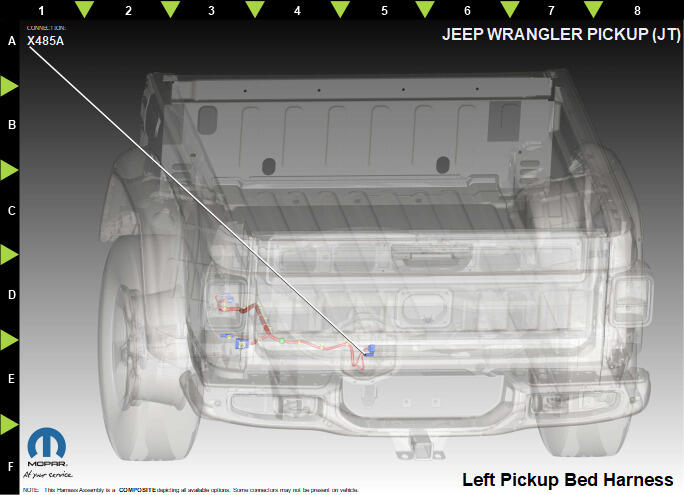

Fig 2: Xy485a Component Location View (Standard)

Courtesy of CHRYSLER
