XY440A (Standard) Connector End View (Y440A)

Harness-Family: JUMPER_HARD_TOP

Color: BLACK

Gender: MALE

Part Number: 1_928_404_227

Part Description: Not Available

Connector No: Y440A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Xy440a Connector End View (Standard)
GCWD1318979Courtesy of CHRYSLER
Fig 2: Xy440a Isometric View (Standard)
GCWD1318154Courtesy of CHRYSLER
Fig 3: Xy440a Wire Insertion View (Standard)
GCWD1318911Courtesy of CHRYSLER

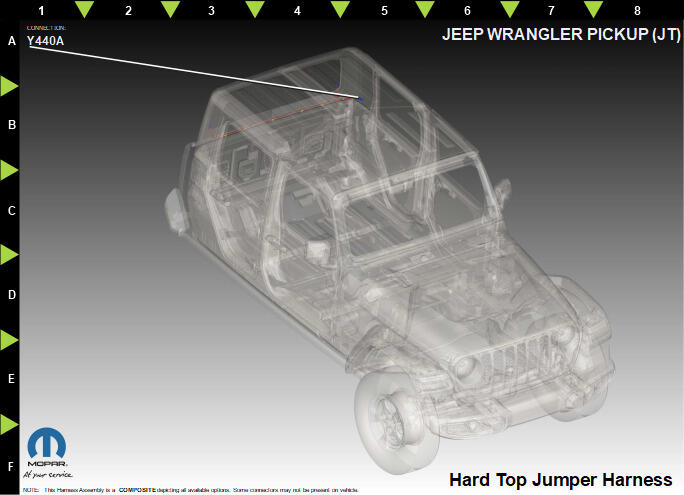

Fig 4: Xy440a Component Location View (Standard)
GCWD1318993Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z915 BK 2.5 GROUND N/A
2 Q997 OG/VT 0.35 ROOF PRESENCE DETECTION SENSE N/A
3 C15 DB/WH 2.5 REAR WINDOW DEFOGGER CONTROL OUTPUT N/A
