XY433A (Standard) Connector End View (X433A)

Harness-Family: Antenna_IP

Color: BROWN

Gender: FEMALE

Part Number: 59Z163-003-F_59Z163-000/51

Part Description: Not Available

Connector No: X433A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

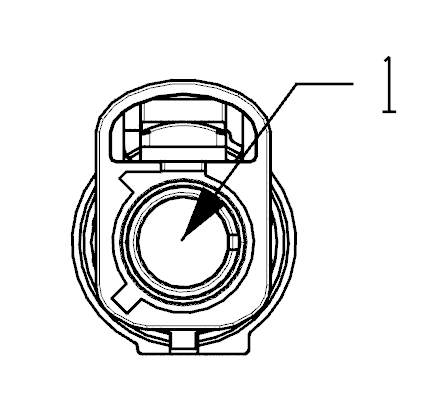

Fig 1: Xy433a Connector End View (Standard)
GCWD1318374Courtesy of CHRYSLER

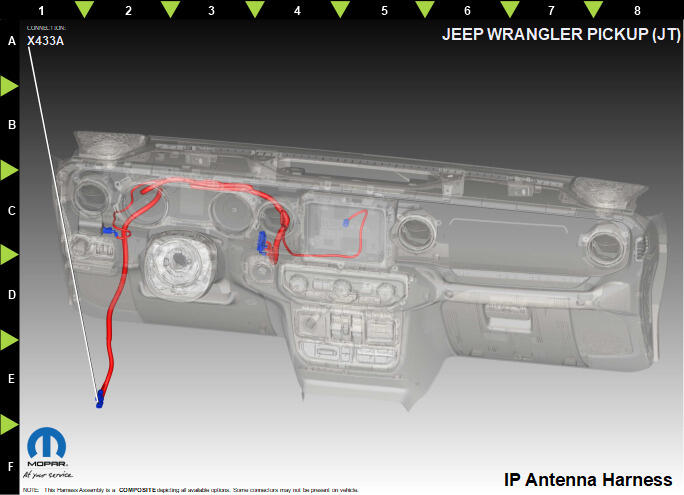

Fig 2: Xy433a Component Location View (Standard)
GCWD1318724Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D7 BK 0.20 CELLULAR ANTENNA SIGNAL N/A
1 D7 BK/BK 0.70 CELLULAR ANTENNA SIGNAL N/A
