XY430B (Standard) Connector End View (X430B)

Harness-Family: Console

Color: BLACK

Gender: FEMALE

Part Number: 35231403

Part Description: Not Available

Connector No: X430B

Option: Standard

Repair Kit Part Number: 05013984AA

Cavity Count: 6

Fig 1: Xy430b Connector End View (Standard)
GCWD1225879Courtesy of CHRYSLER
Fig 2: Xy430b Isometric View (Standard)
GCWD1225448Courtesy of CHRYSLER
Fig 3: Xy430b Wire Insertion View (Standard)
GCWD1225580Courtesy of CHRYSLER

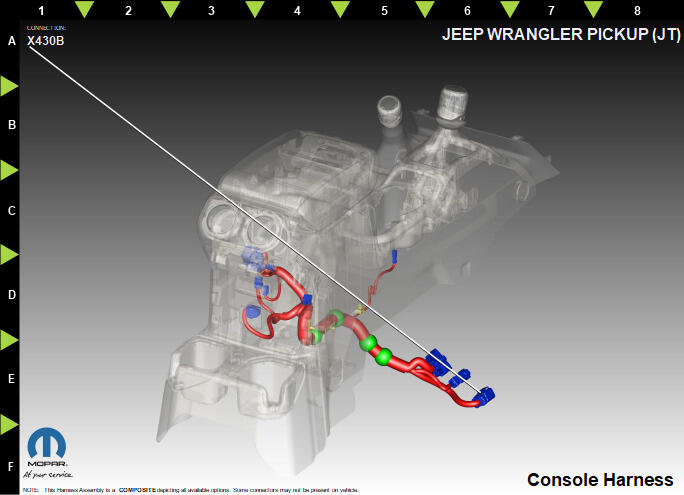

Fig 4: Xy430b Component Location View (Standard)
GCWD1318239Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Q111 BG/YE 2.0 DRIVER REAR WINDOW DRIVER (UP) N/A
2 Q112 OG/BN 2.0 PASSENGER REAR WINDOW DRIVER (UP) N/A
3 Q211 BG/BU 2.0 DRIVER REAR WINDOW DRIVER (DOWN) N/A
4 Q212 OG/VT 2.0 PASSENGER REAR WINDOW DRIVER (DOWN) N/A
5 N0 NA 0 NO CONNECT N/A
6 Z917 BK 2.0 GROUND N/A
