XY421A (Standard) Connector End View (X421A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1-2299071-1

Part Description: Not Available

Connector No: X421A

Option: Standard

Repair Kit Part Number: 68490832AA

Cavity Count: 2

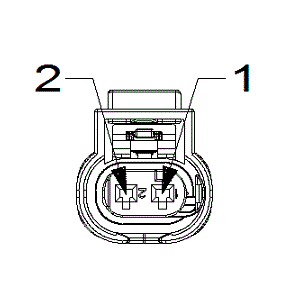

Fig 1: Xy421a Connector End View (Standard)

GCWD1007284

Courtesy of CHRYSLER

Fig 2: Xy421a Isometric View (Standard)

GCWD1009550

Courtesy of CHRYSLER

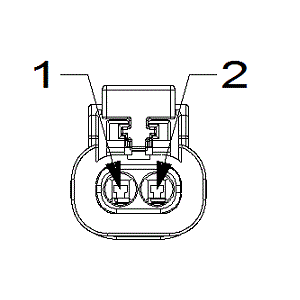

Fig 3: Xy421a Wire Insertion View (Standard)

GCWD1008004

Courtesy of CHRYSLER

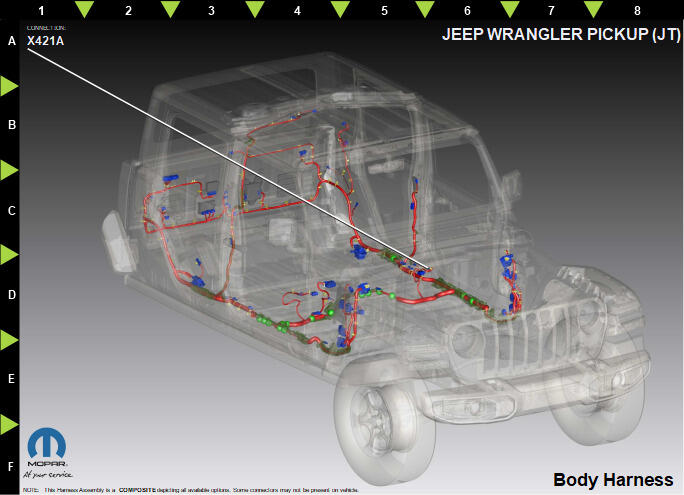

Fig 4: Xy421a Component Location View (Standard)

GCWD1318885

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R5	BU/VT	0.35	LEFT SEAT THORAX SQUIB 1 LINE 2	N/A
2	R7	GN/GY	0.35	LEFT SEAT THORAX SQUIB 1 LINE 1	N/A
