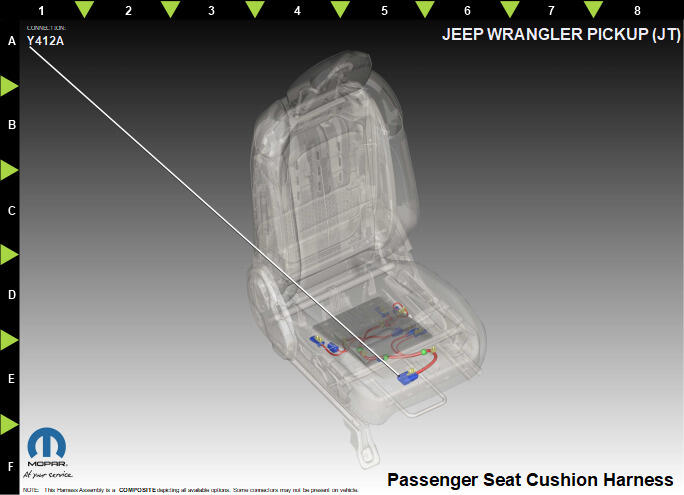

XY412A (Standard) Connector End View (Y412A)

Harness-Family: Seat_Cushion_Pass

Color: BLACK

Gender: MALE

Part Number: 33482-8601

Part Description: Not Available

Connector No: Y412A

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 16

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F506	PK/OG	0.75	PASSENGER SEAT CUSHION SUPPLY	N/A
2	F508	PK/GN	0.75	PASSENGER SEAT BACK SUPPLY	N/A
3	F915	PK	0.50	FUSED IGNITION RUN/START	N/A
4	N0	NA	0	NO CONNECT	N/A
5	R58	BU/GY	0.75	PASSENGER SEAT BELT SWITCH SENSE	N/A
6	P417	GN/GY	0.35	PASSENGER FRONT HEATED SEAT CUSHION TEMP SENSE	N/A
7	P418	BG/VT	0.35	PASSENGER FRONT HEATED SEAT BACK TEMP SENSE	N/A
8	P419	OG/BK	0.35	SENSOR RETURN	N/A
9	N0	NA	0	NO CONNECT	N/A
10	R264	VT/BU	0.50	PASSENGER SEAT POSITION SENSOR VOLTAGE	N/A
11	R730	BU/BK	0.50	PASSENGER SEAT DETECTION RETURN	N/A
12	R283	BU/DG	0.50	PASSENGER SEAT OCCUPANT DETECTION SIGNAL	N/A
13	D13	YE/BU	0.35	CAN C (+)	N/A
14	D14	YE	0.35	CAN C (-)	N/A
15	Z921	BK	0.75	GROUND	N/A
16	Z917	BK	1.0	GROUND	N/A
