XY351A (Standard) Connector End View (X351A)

Harness-Family: Dash

Color: GRAY

Gender: FEMALE

Part Number: 7283-3740-40

Part Description: KAIZEN CONNECTOR SUB ASSEMBLY

Connector No: X351A

Option: Standard

Repair Kit Part Number: 68528163AA

Cavity Count: 6

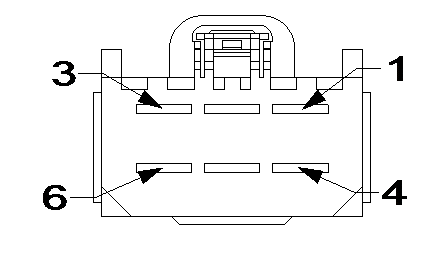

Fig 1: Xy351a Connector End View (Standard)

GCWD1013673

Courtesy of CHRYSLER

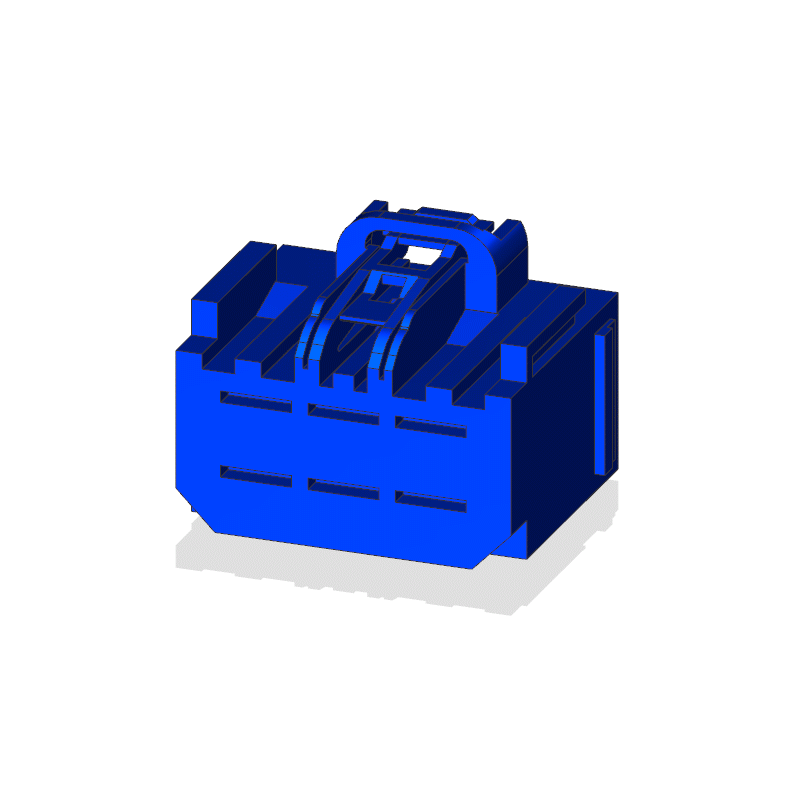

Fig 2: Xy351a Isometric View (Standard)

GCWD1011731

Courtesy of CHRYSLER

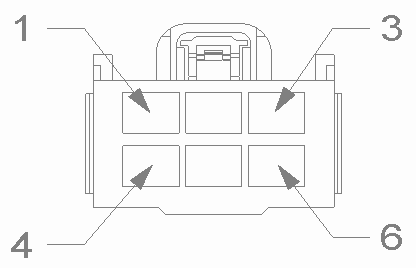

Fig 3: Xy351a Wire Insertion View (Standard)

GCWD1007327

Courtesy of CHRYSLER

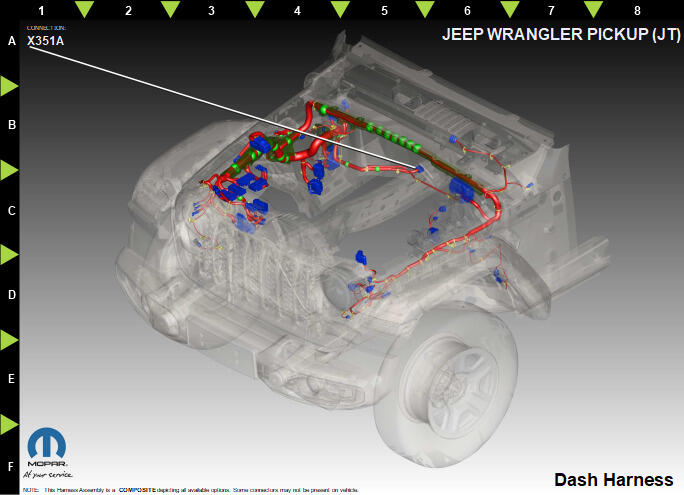

Fig 4: Xy351a Component Location View (Standard)

GCWD1318764

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F285	PK/BN	5.0	FUSED CABIN HEATER 1 SUPPLY	N/A
2	F286	PK/OG	5.0	FUSED CABIN HEATER 2 SUPPLY	N/A
3	F288	PK/VT	5.0	FUSED CABIN HEATER 3 SUPPLY	N/A
4	Z906	BK	4.0	GROUND	N/A
5	Z906	BK	4.0	GROUND	N/A
6	Z906	BK	4.0	GROUND	N/A
