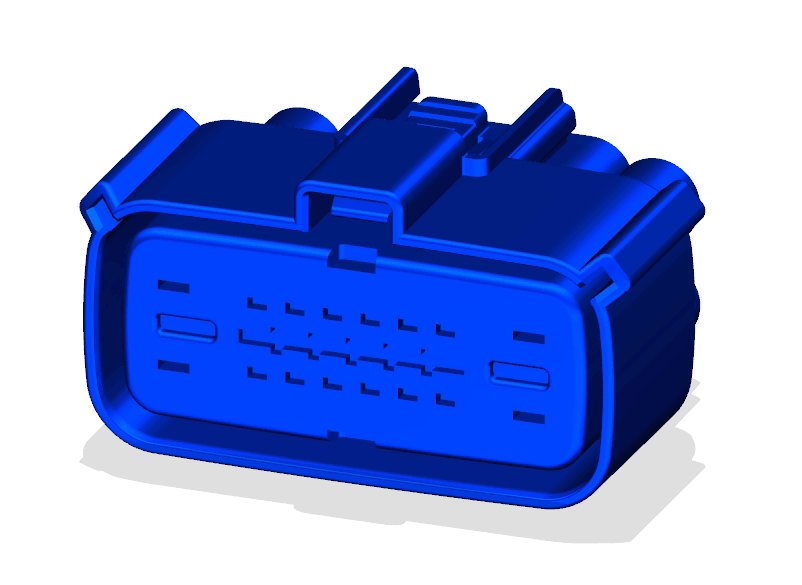

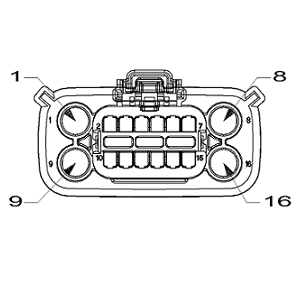

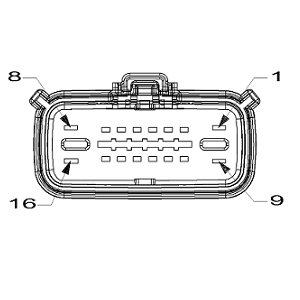

XY330A (Standard) Connector End View (X330A)

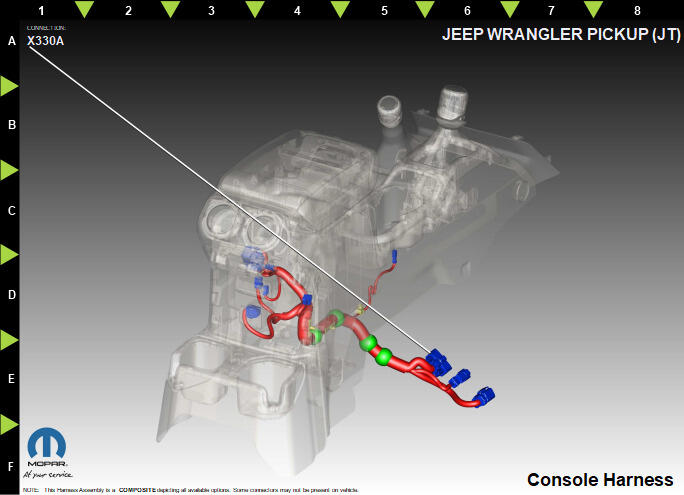

Harness-Family: Console

Color: BLACK

Gender: FEMALE

Part Number: 34985-1601

Part Description: Not Available

Connector No: X330A

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 16

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F981	PK/YE	3.0	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
2	F982	PK/YE	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
3	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
4	N0	NA	0	NO CONNECT	N/A
5	Q612	OG/DB	0.75	MASTER WINDOW SWITCH RIGHT REAR (DOWN)	N/A
6	Q411	OG/WH	0.75	MASTER WINDOW SWITCH LEFT REAR (UP)	N/A
7	Q412	OG/BU	0.75	MASTER WINDOW SWITCH RIGHT REAR (UP)	N/A
8	Z912	BK	0.75	GROUND	N/A
9	A233	RD/GY	0.75	FUSED B(+)	N/A
10	M27	YE/BU	0.75	READING LAMPS DRIVER	N/A
11	Q611	OG/GY	0.75	MASTER WINDOW SWITCH LEFT REAR (DOWN)	N/A
12	P802	GN/OG	1.0	115 VOLT AC LINE 2	110VAC INVERTER
12	P828	GN/OG	1.0	220 VOLT AC LINE 2	220VAC INVERTER
13	P824	GN	1.0	220 VOLT AC LINE 1	220VAC INVERTER
13	P801	GN	1.0	115 VOLT AC LINE 1	110VAC INVERTER
14	P805	GN/DB	0.35	115 VOLT AC LINE 3	110VAC INVERTER
14	P825	GN/BU	0.35	220 VOLT AC LINE 3	220VAC INVERTER
15	P827	GN/DB	0.35	INVERTER SWITCH SIGNAL	220VAC INVERTER
15	P807	GN/BU	0.35	INVERTER SWITCH SIGNAL	110VAC INVERTER
16	N0	NA	0	NO CONNECT	N/A
