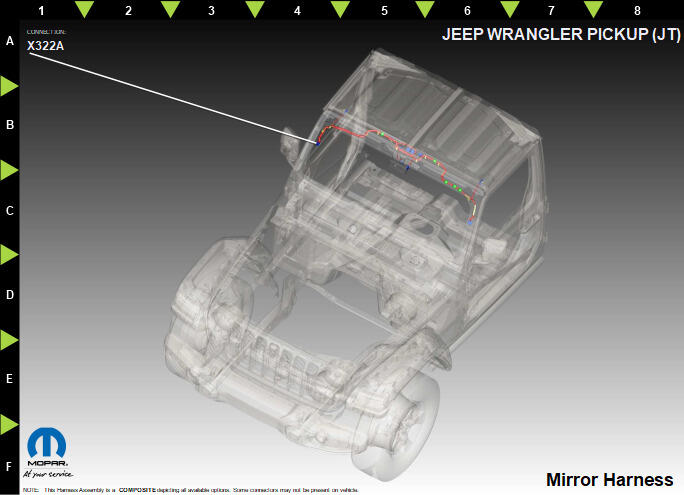

XY322A (Standard) Connector End View (X322A)

Harness-Family: Mirror

Color: BLACK

Gender: FEMALE

Part Number: 7289-6568-30

Part Description: Not Available

Connector No: X322A

Option: Standard

Repair Kit Part Number: 68475545AB

Cavity Count: 16

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	M27	YE/BU	0.50	READING LAMPS DRIVER	N/A
2	E12	OG/GY	0.35	PANEL LAMPS DRIVER	N/A
3	F916	PK/BU	0.75	FUSED IGNITION RUN/START	N/A
4	F982	PK/YE	0.50	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)	N/A
5	G38	GY	0.35	UGDO ENABLE CONTROL CIRCUIT	N/A
6	D460	YE	0.75	CAN C (-)	N/A
7	D461	YE/GY	0.75	CAN C (+)	N/A
8	D402	OG/VT	0.50	LIN BUS CBC 2	N/A
9	X801	DB	0.35	EMERGENCY SWITCH LED 1 SUPPLY	N/A
10	X802	DG	0.35	EMERGENCY SWITCH LED 2 SUPPLY	N/A
11	X803	BN	0.35	EMERGENCY COMMUNICATION BUTTON SUPPLY	N/A
12	X804	OG	0.35	EMERGENCY BACKLIGHT CONTROL	N/A
13	X805	OG/BK	0.35	EMERGENCY SWITCH RETURN	N/A
14	A238	RD/BU	0.50	FUSED B(+)	N/A
15	N0	NA	0	NO CONNECT	N/A
16	Z910	BK	0.50	GROUND	N/A
