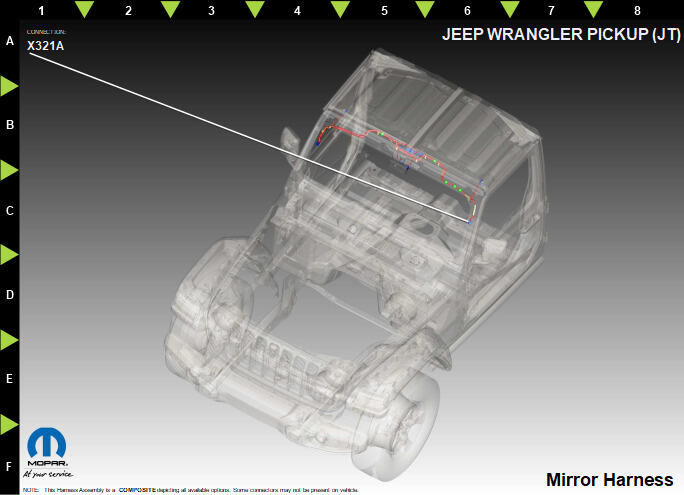

XY321A (Standard) Connector End View (X321A)
Harness-Family: Mirror
Color: BLACK
Gender: FEMALE
Part Number: 7289-6568-30
Part Description: Not Available
Connector No: X321A
Option: Standard
Repair Kit Part Number: 68475545AB
Cavity Count: 16
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | N0 | NA | 0 | NO CONNECT | N/A |
| 2 | N0 | NA | 0 | NO CONNECT | N/A |
| 3 | X723 | BU/BG | 0.35 | HANDS FREE MICROPHONE 2 IN (-) | N/A |
| 4 | X722 | BU/DG | 0.35 | HANDS FREE MICROPHONE 2 IN (+) | N/A |
| 5 | X806 | GY/BU | 0.35 | EMERGENCY MICROPHONE (+) | EMERGENCY ASSISTANCE |
| 5 | X712 | DG/BU | 0.35 | HANDS FREE MICROPHONE 1 IN (+) | EXCEPT EMERGENCY ASSISTANCE |
| 6 | X792 | BU/GN | 0.35 | HANDS FREE MICROPHONE 1 IN (-) | EXCEPT EMERGENCY ASSISTANCE |
| 6 | X807 | GY/DG | 0.35 | EMERGENCY MICROPHONE (-) | EMERGENCY ASSISTANCE |
| 7 | N0 | NA | 0 | NO CONNECT | N/A |
| 8 | N0 | NA | 0 | NO CONNECT | N/A |
| 9 | N0 | NA | 0 | NO CONNECT | N/A |
| 10 | N0 | NA | 0 | NO CONNECT | N/A |
| 11 | N0 | NA | 0 | NO CONNECT | N/A |
| 12 | N0 | NA | 0 | NO CONNECT | N/A |
| 13 | N0 | NA | 0 | NO CONNECT | EXCEPT EXPORT |
| 13 | R167 | DB | 0.50 | AIRBAG ON LAMP PASSENGER | EXPORT |
| 14 | R168 | GN/WH | 0.50 | AIRBAG OFF LAMP PASSENGER | N/A |
| 15 | N0 | NA | 0 | NO CONNECT | N/A |
| 16 | N0 | NA | 0 | NO CONNECT | N/A |
