XY309A (Standard) Connector End View (X309A)

Harness-Family: JUMPER_WINDSHIELD

Color: BLACK

Gender: FEMALE

Part Number: 7283-8851-30

Part Description: RH TYPE CONNECTOR 2P

Connector No: X309A

Option: Standard

Repair Kit Part Number: 68602018AA

Cavity Count: 2

Fig 1: Xy309a Connector End View (Standard)

GCWD1013951

Courtesy of CHRYSLER

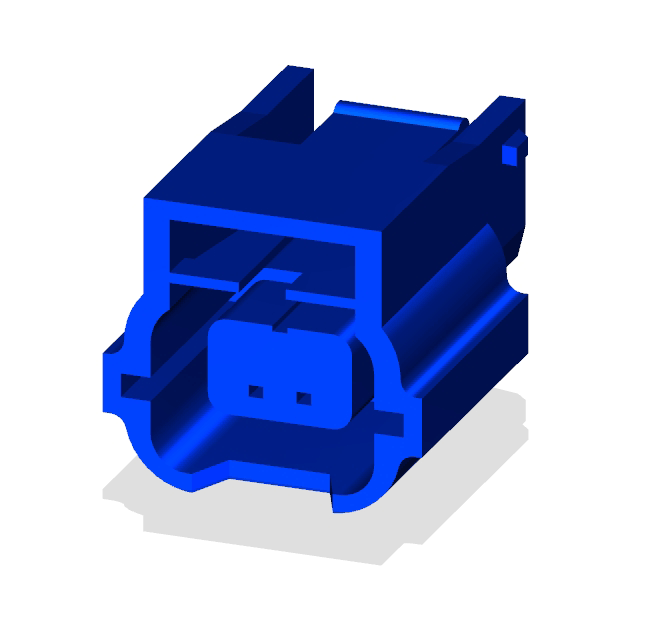

Fig 2: Xy309a Isometric View (Standard)

GCWD1011952

Courtesy of CHRYSLER

Fig 3: Xy309a Wire Insertion View (Standard)

GCWD1007568

Courtesy of CHRYSLER

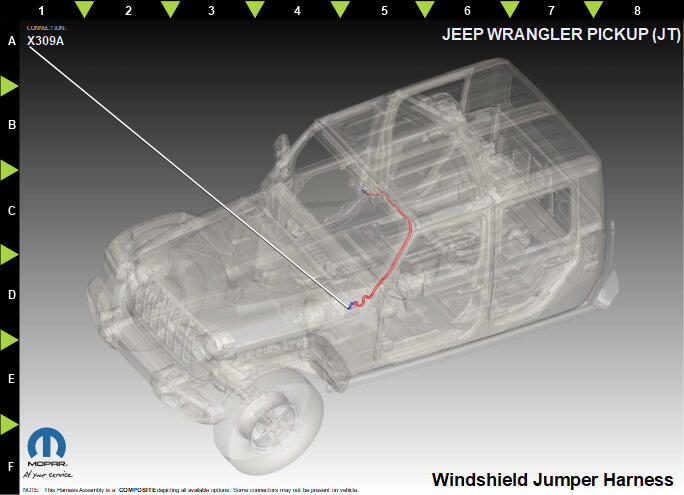

Fig 4: Xy309a Component Location View (Standard)

GCWD1318328

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C9	BU/VT	0.75	ELECTRIC WINDSHIELD WIPER DE-ICER CONTROL	N/A
2	Z907	BK	0.75	GROUND	N/A
