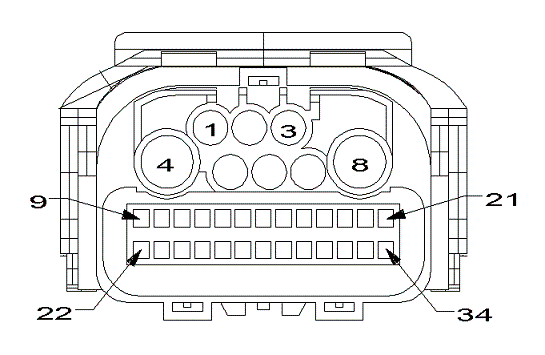

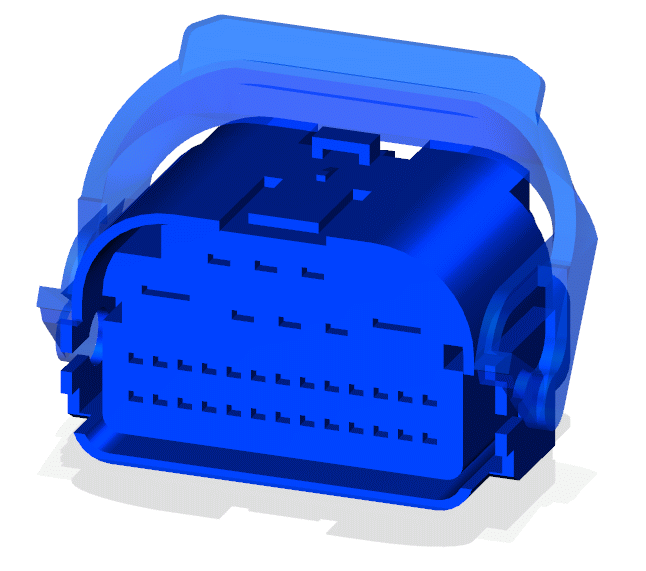

XY302A (Standard) Connector End View (X302A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1438841-2

Part Description: Not Available

Connector No: X302A

Option: Standard

Repair Kit Part Number: 68496385AA

Cavity Count: 34

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A234	RD/YE	1.5	FUSED B(+)	N/A
2	A108	GN/RD	0.50	FUSED B(+)	N/A
3	F981	PK/YE	3.0	FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT	N/A
4	A400	BG/RD	2.0	FUSED B(+)	N/A
5	F344	BN/GY	1.5	FUSED ASD RELAY OUTPUT	N/A
6	F408	PK/DB	0.75	MIRROR SWITCH SUPPLY	N/A
7	A900	GY/RD	0.50	FUSED B(+)	N/A
8	C7	DB	3.0	BLOWER MOTOR SUPPLY	N/A
9	A238	RD/BU	0.75	FUSED B(+)	N/A
10	A233	RD/GY	0.75	FUSED B(+)	N/A
11	C115	DB	0.35	DEFOGGER RELAY CONTROL	N/A
12	C27	BU/WH	0.35	A/C COMPRESSOR CONTROL	N/A
13	D401	OG	0.35	LIN BUS CBC 1	N/A
14	B937	DG/OG	0.50	BRAKE PEDAL TRAVEL SENSOR RETURN	N/A
15	B137	DG/BN	0.50	PEDAL TRAVEL SNSR SIG	N/A
16	B237	DG/YE	0.50	PEDAL TRAVEL SNSR FEED	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	D29	VT/WH	0.75	CAN C (+)	N/A
20	D303	YE/WH	0.35	CAN C (+)	N/A
21	F201	PK/OG	0.75	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
22	A231	RD/OG	0.35	FUSED B(+)	N/A
23	A232	RD/VT	0.35	FUSED B(+)	N/A
24	P820	BN/OG	0.35	AUX 1 RELAY CTRL SIGNAL	N/A
25	P821	BN/VT	0.35	AUX 2 RELAY CTRL SIGNAL	N/A
26	P822	BN/WH	0.35	AUX 3 RELAY CTRL SIGNAL	N/A
27	P823	BN/GY	0.35	AUX 4 RELAY CTRL SIGNAL	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	N0	NA	0	NO CONNECT	N/A
32	D30	YE	0.75	CAN C (-)	N/A
33	D304	YE	0.35	CAN C (-)	N/A
34	C110	DB/BU	0.75	MIRROR HEATER DRIVER	N/A
