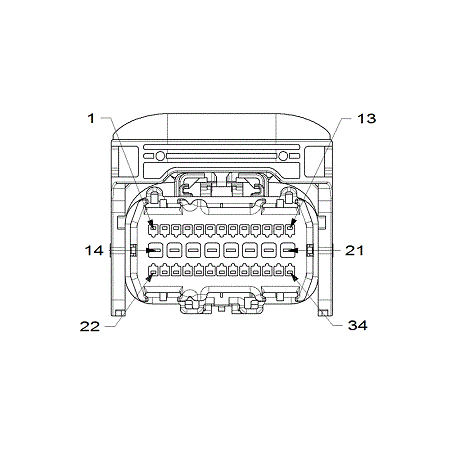

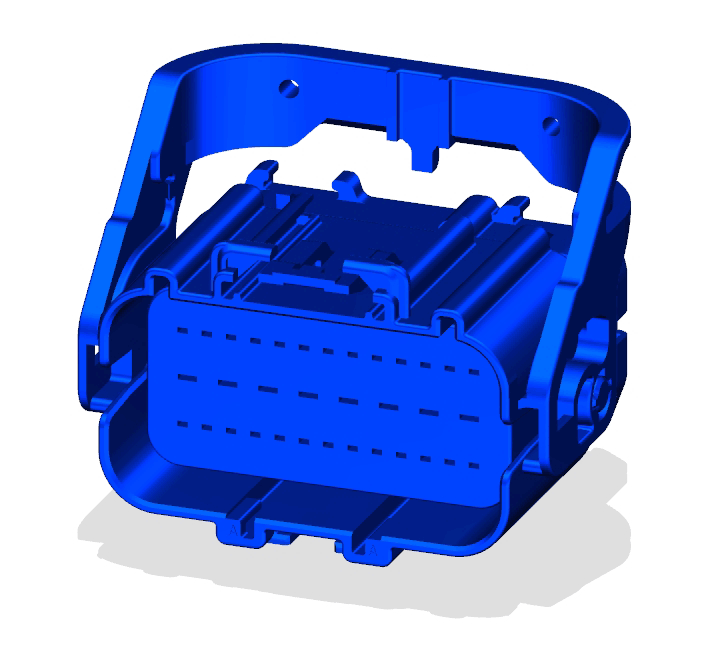

XY292A (Standard) Connector End View (X292A)

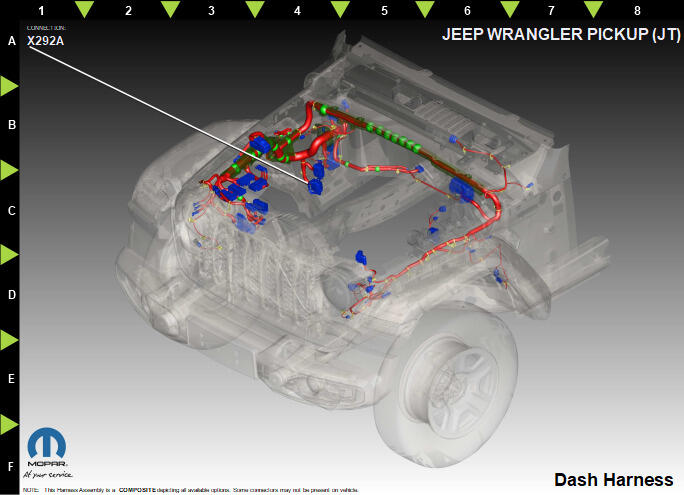

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 80043508A01B

Part Description: Not Available

Connector No: X292A

Option: Standard

Repair Kit Part Number: 68305269AA

Cavity Count: 34

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F203	PK/BU	0.50	FUSED SCR RELAY 1 OUTPUT	N/A
2	F205	PK	0.35	FUSED SCR RELAY 2 OUTPUT	N/A
3	K665	BN/YE	0.35	SENSOR SIGNAL	N/A
4	K662	VT/GY	0.35	SENSOR RETURN	N/A
5	K420	DB/OG	0.50	DEF LEVEL/TEMP RETURN	N/A
6	K414	BN/YE	0.35	DEF LEVEL/TEMP SIGNAL	N/A
7	G123	VT/GN	0.35	WIF SENSOR 1 SIGNAL	N/A
8	K923	BN/WH	0.35	WATER IN FUEL SENSOR GROUND	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	F204	PK/OG	1.0	FUSED SCR RELAY 2 OUTPUT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	A914	RD	5.0	FUSED B(+)	N/A
15	F343	BN/YE	2.0	FUSED ASD RELAY OUTPUT	N/A
16	Z906	BK/GN	1.5	GROUND	N/A
17	F326	PK/DG	2.5	DIESEL FUEL HEATER SUPPLY	N/A
18	N0	NA	0	NO CONNECT	N/A
19	Z906	BK/BU	2.5	GROUND	N/A
20	Z906	BK/VT	1.5	GROUND	N/A
21	Z906	BK/GY	2.5	GROUND	N/A
22	K676	BG/BN	1.0	MOTOR (-)	N/A
23	K675	BN	0.75	MOTOR (+)	N/A
24	F854	GY/PK	0.35	5 VOLT SUPPLY	N/A
25	K428	DB	0.75	DEF INJECTOR POSITIVE	N/A
26	K426	DB/GN	0.75	DEF INJECTOR NEGATIVE	N/A
27	K156	GY/VT	0.35	FUEL TEMP SIGNAL	N/A
28	K159	VT/DB	0.35	FUEL TEMP SNSR RTN	N/A
29	N0	NA	0	NO CONNECT	N/A
30	D468	GY/WH	0.35	PRIVATE CAN (-)	N/A
31	D469	GY	0.35	PRIVATE CAN (+)	N/A
32	N0	NA	0	NO CONNECT	N/A
33	K482	BN	0.75	DEF SUPPLY PUMP CONTROL	N/A
34	K481	BN/GY	0.75	DEF PURGE PUMP CONTROL	N/A
