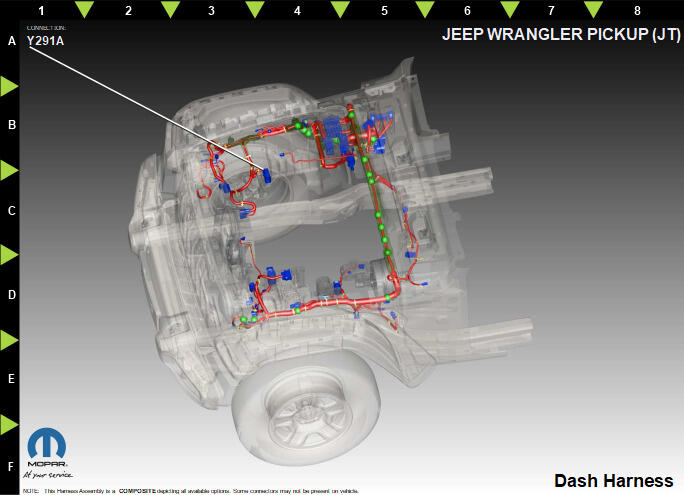

XY291A (Standard) Connector End View (Y291A)

Harness-Family: Dash

Color: BLACK

Gender: MALE

Part Number: 80043512A01C

Part Description: Not Available

Connector No: Y291A

Option: Standard

Repair Kit Part Number: 68396616AA

Cavity Count: 34

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F941	PK/WH	0.35	IGNITION RUN/START CONTROL OUTPUT	N/A
2	L89	WH/YE	0.75	LEFT FRONT FOG LAMP CONTROL	N/A
3	F861	WH/PK	0.35	HEADLAMP LEVELING SNSR 5V SUPPLY	N/A
4	L963	WH/DB	0.35	HEADLAMP LEVELING SENSOR REAR SIGNAL	N/A
5	L966	WH/BK	0.35	HEADLAMP LEVELING SENSOR FRONT RETURN	N/A
6	A943	RD	0.35	FUSED B(+)	N/A
7	N7	DB/OG	0.35	FUEL TANK PRESSURE SIGNAL	N/A
8	K917	BN/BG	0.35	SENSOR GROUND	N/A
9	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
10	B6	DG/WH	0.35	RIGHT FRONT WHEEL SPEED SENSOR (-)	N/A
11	B7	DG/VT	0.35	RIGHT FRONT WHEEL SPEED SENSOR (+)	N/A
12	B3	DG/YE	0.35	LEFT REAR WHEEL SPEED SENSOR (-)	N/A
13	B4	DG/GY	0.35	LEFT REAR WHEEL SPEED SENSOR (+)	N/A
14	N1	DB/OG	2.5	FUEL PUMP CONTROL OUTPUT	N/A
15	A959	RD	1.5	FUSED B(+)	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	Z906	BK/YE	1.5	GROUND	N/A
20	Z906	BK/YE	1.5	GROUND	N/A
21	Z906	BK/BU	2.5	GROUND	N/A
22	L90	WH/OG	0.75	RIGHT FRONT FOG LAMP CONTROL	N/A
23	K99	BN/GN	0.50	O2 1/1 HEATER CONTROL	3.6L GAS
23	K89	BN/GN	0.35	O2 1/1 POSITIVE CURRENT CONTROL	3.0L DIESEL
24	K902	BN/DG	0.35	O2 RETURN (UPSTREAM)	3.0L DIESEL
24	K902	BN/DG	0.50	O2 RETURN (UPSTREAM)	3.6L GAS
25	K41	DB/BU	0.35	O2 1/1 SIGNAL	3.0L DIESEL
25	K41	DB/BU	0.50	O2 1/1 SIGNAL	3.6L GAS
26	N11	DB/BG	0.35	FPCM PWM CONTROL	N/A
27	N12	DB/GN	0.35	FPCM PWM FEEDBACK	N/A
28	K108	VT/GY	0.35	ESIM SIGNAL	N/A
29	K917	BN/BG	0.35	SENSOR GROUND	N/A
30	Z909	BK	0.75	GROUND	3.6L GAS
30	K79	BN/BU	0.75	O2 1/1 HEATER CONTROL	3.0L DIESEL
31	D303	YE/WH	0.35	CAN C (+)	N/A
32	D304	YE	0.35	CAN C (-)	N/A
33	B1	DG/OG	0.35	RIGHT REAR WHEEL SPEED SENSOR (-)	N/A
34	B2	DG/BU	0.35	RIGHT REAR WHEEL SPEED SENSOR (+)	N/A
