G901F (Standard) Connector End View (G901F)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8744

Part Description: Not Available

Connector No: G901F

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: G901f Connector End View (Standard)
GCWD1225611Courtesy of CHRYSLER
Fig 2: G901f Isometric View (Standard)
GCWD1225453Courtesy of CHRYSLER

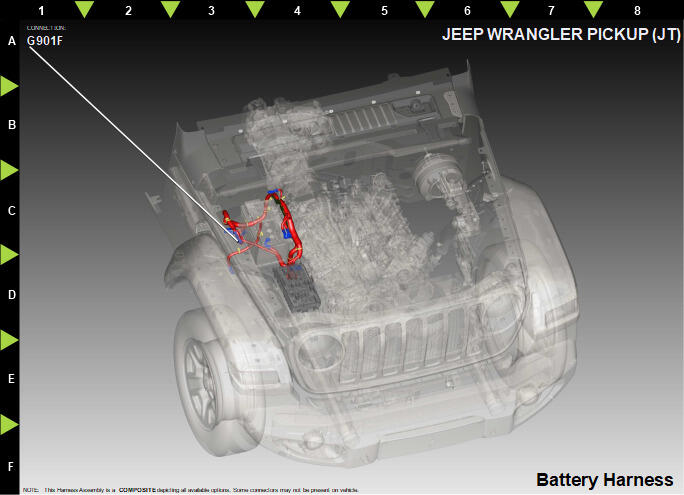

Fig 3: G901f Component Location View (Standard)
GCWD1318891Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z901 BK 35.0 GROUND N/A
