Fuse N5 100A (Standard) Connector End View (F202)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: FUSE_ARRAY

Part Description: Not Available

Connector No: F202

Option: Standard

Repair Kit Part Number: See Starparts

Cavity Count: 2

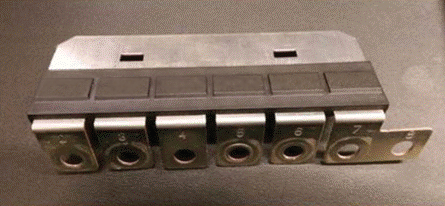

Fig 1: Fuse N5 100a Connector End View (Standard)
GCWD1238602Courtesy of CHRYSLER
Fig 2: Fuse N5 100a Component Location View (Standard)
GCWD1318698Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A1 INTERNAL NA FUSED B(+) N/A
2 A13 INTERNAL NA FUSED B(+) N/A
