Fuse F77 10A (Standard) Connector End View (F77)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F77

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F77 10a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

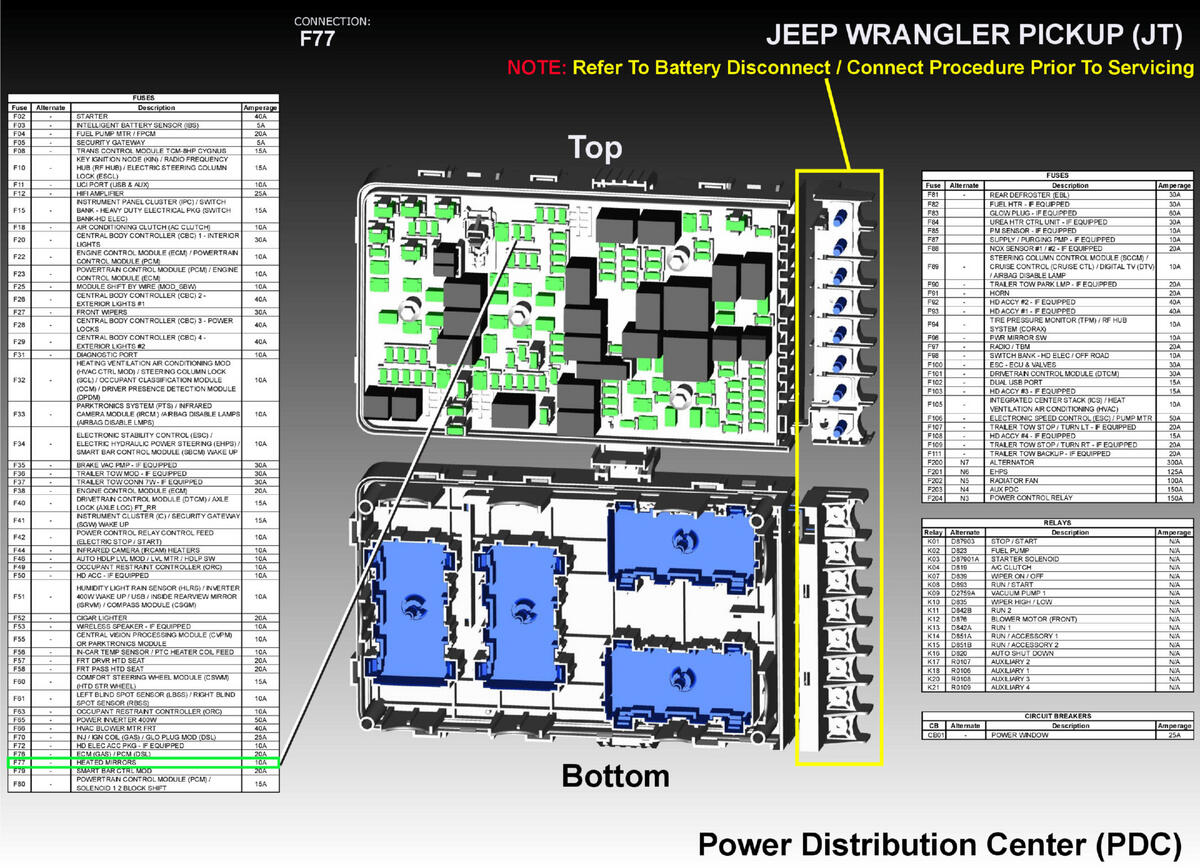

Fig 2: Fuse F77 10a Component Location View (Standard)
GCWD1318142Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C515 INTERNAL NA REAR WINDOW DEFOGGER RELAY OUTPUT N/A
2 C110 INTERNAL NA MIRROR HEATER DRIVER N/A
