Fuse F76 20A (Standard) Connector End View (F76)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F76

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F76 20a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

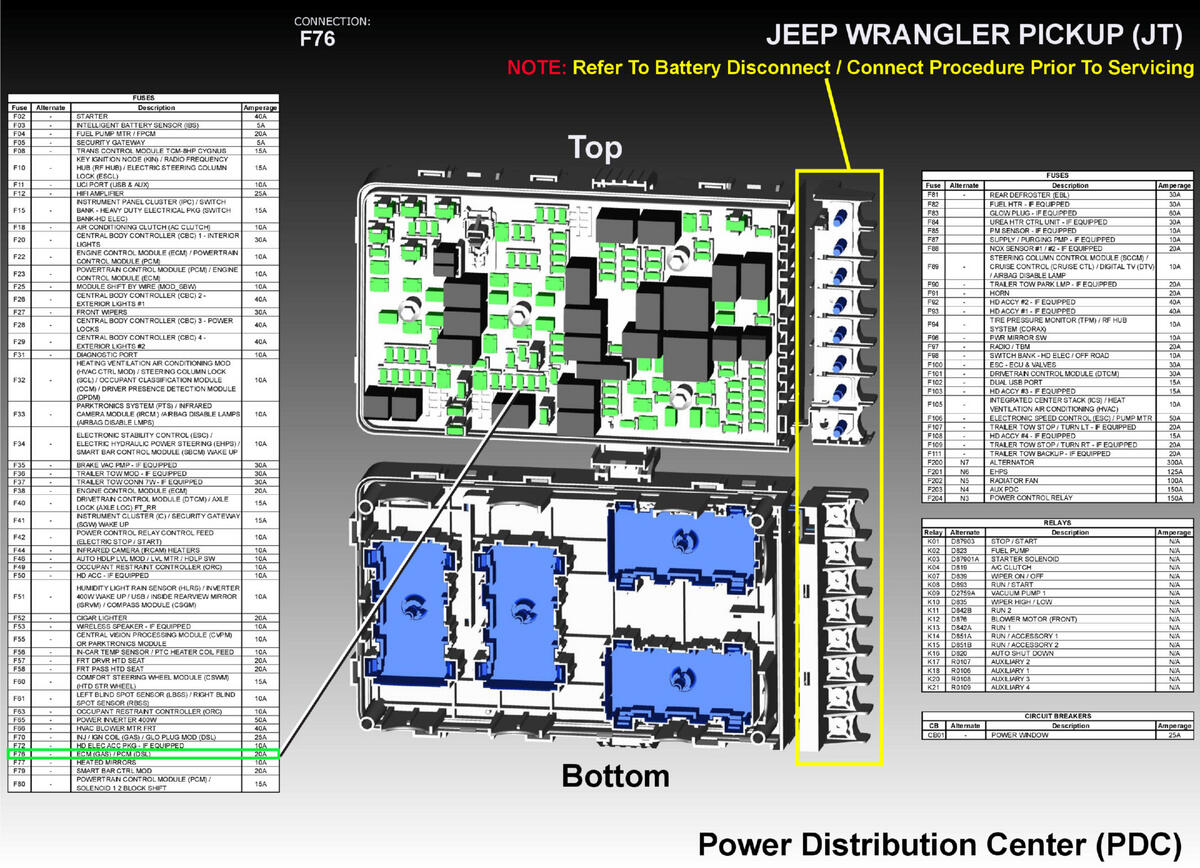

Fig 2: Fuse F76 20a Component Location View (Standard)
GCWD1318143Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K542 INTERNAL NA ASD RELAY CONTROL N/A
2 F342 INTERNAL NA FUSED ASD RELAY OUTPUT N/A
