Fuse F50 10A (Standard) Connector End View (F50)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F50

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F50 10a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

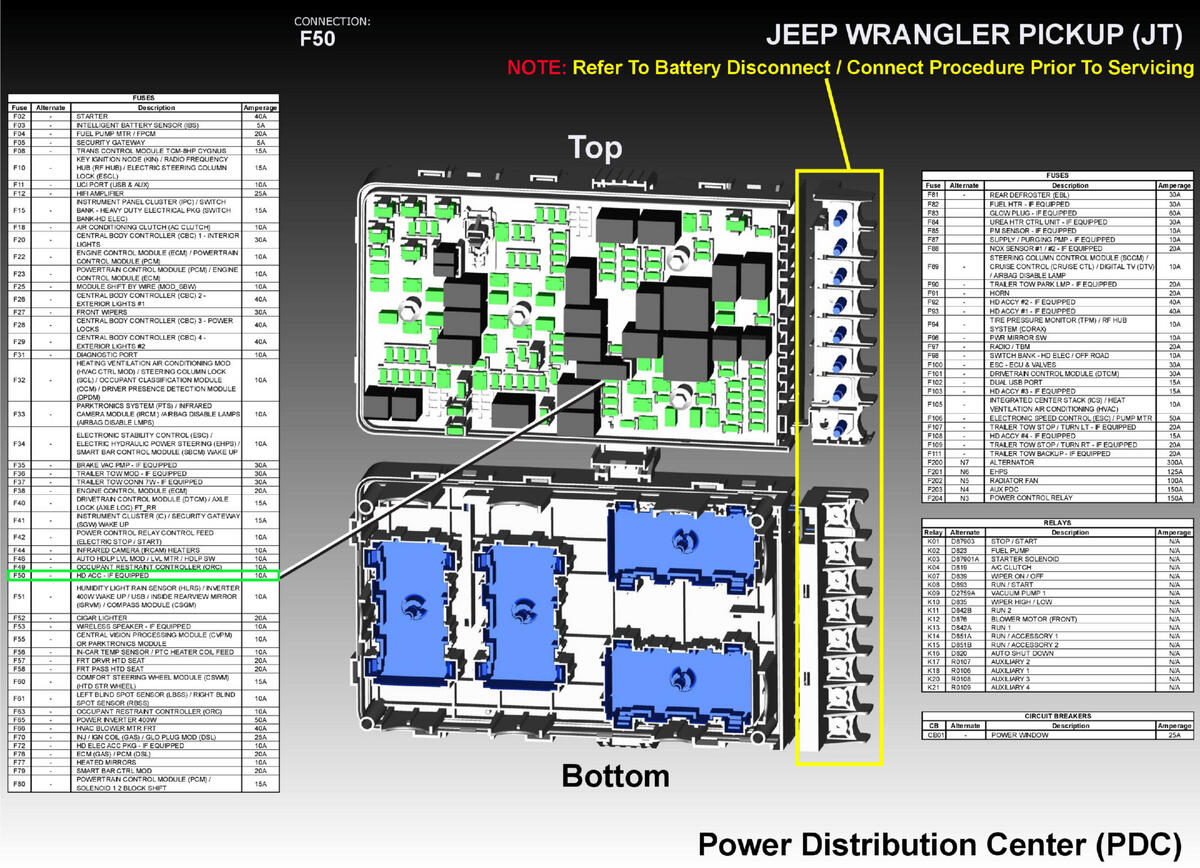

Fig 2: Fuse F50 10a Component Location View (Standard)
GCWD1318157Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F781 INTERNAL NA IGNITION RUN ACC N/A
2 F606 INTERNAL NA IGNITION RUN OUTPUT N/A
