Fuse F46 10A (Standard) Connector End View (F46)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F46

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

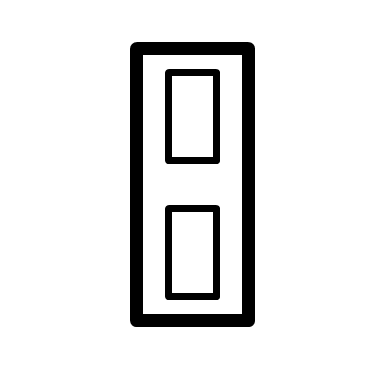

Fig 1: Fuse F46 10a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

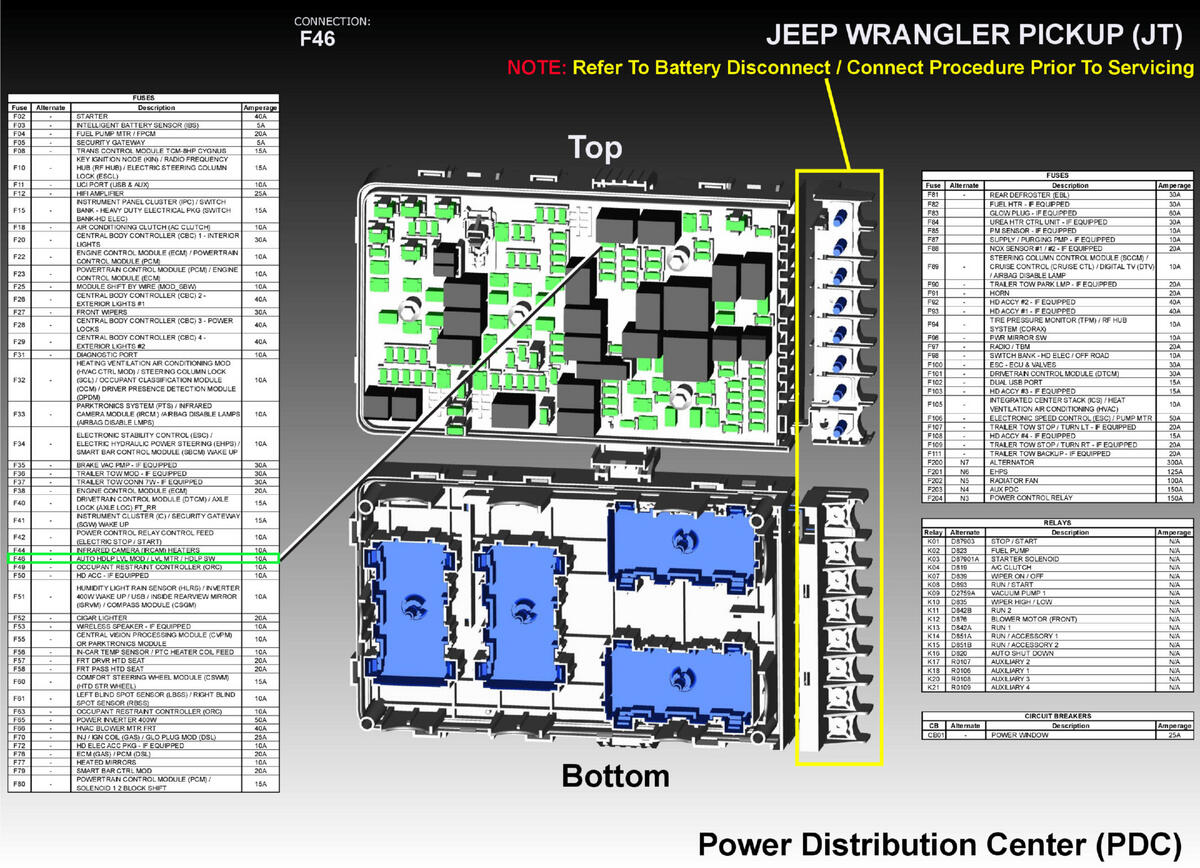

Fig 2: Fuse F46 10a Component Location View (Standard)
GCWD1318186Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F930 INTERNAL NA FUSED IGNITION RUN CONTROL OUTPUT N/A
2 F927 INTERNAL NA FUSED IGNITION N/A
