Fuse F40 15A (Standard) Connector End View (F40)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F40

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F40 15a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

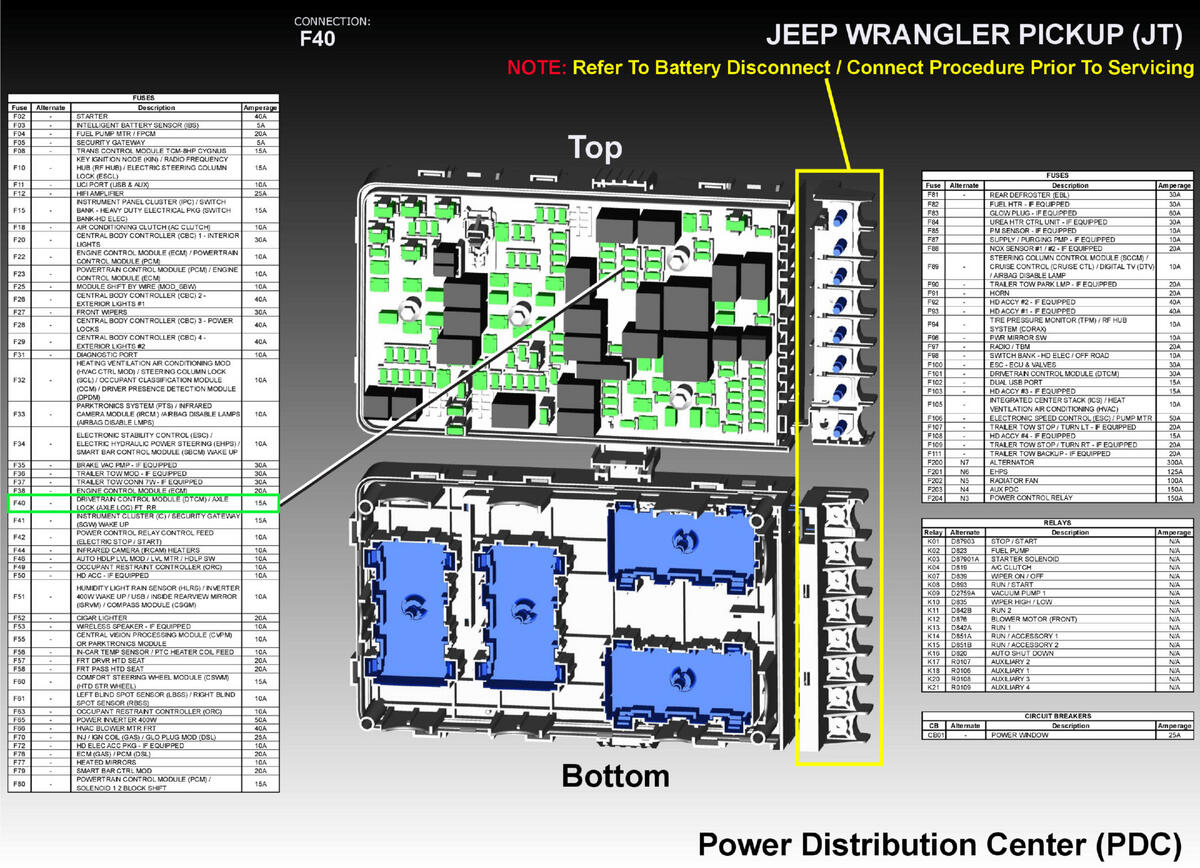

Fig 2: Fuse F40 15a Component Location View (Standard)
GCWD1318178Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F900 INTERNAL NA FUSED IGNITION N/A
2 F946 INTERNAL NA FUSED IGNITION RUN/START CONTROL OUTPUT N/A
