Fuse F18 10A (Standard) Connector End View (F18)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F18

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F18 10a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

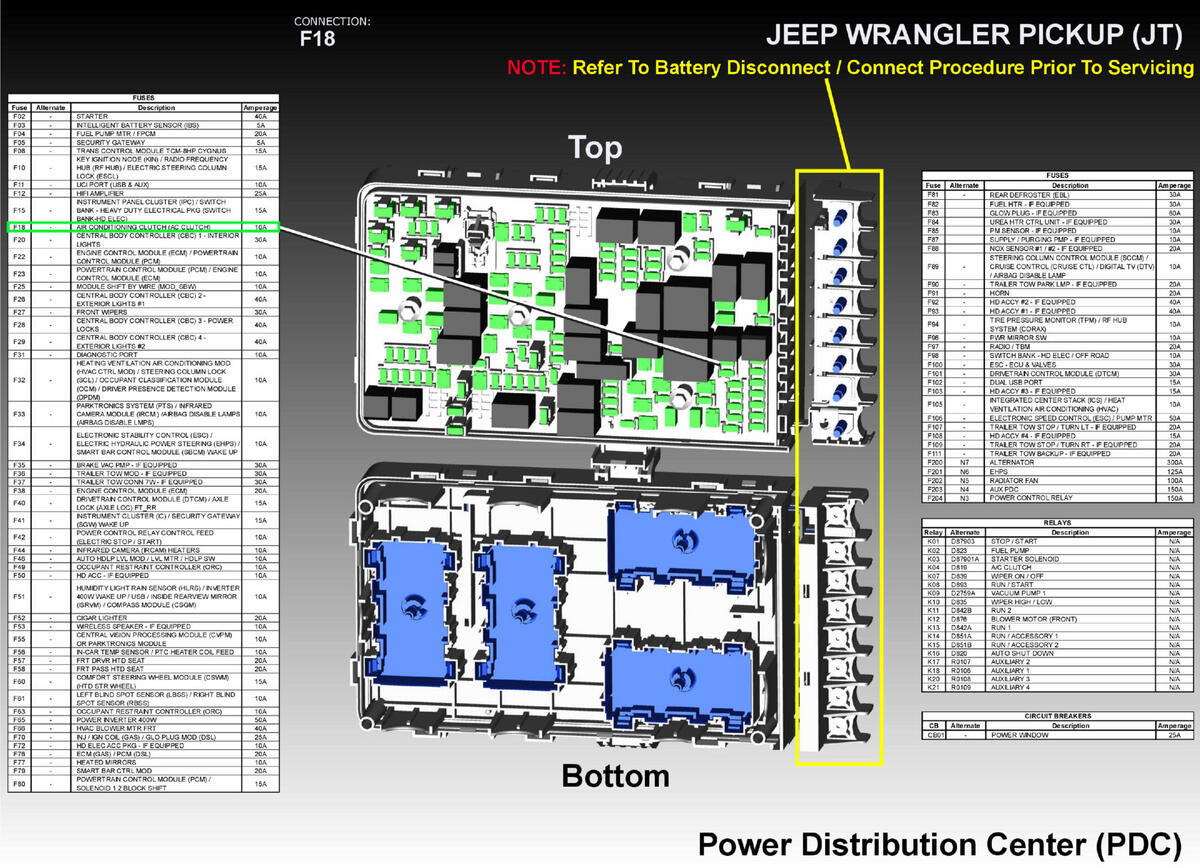

Fig 2: Fuse F18 10a Component Location View (Standard)
GCWD1318367Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C3 INTERNAL NA A/C CLUTCH CONTROL OUTPUT N/A
2 C3 INTERNAL NA A/C CLUTCH CONTROL OUTPUT N/A
