Fuse F02 40A (Standard) Connector End View (F02)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F02

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse F02 40a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

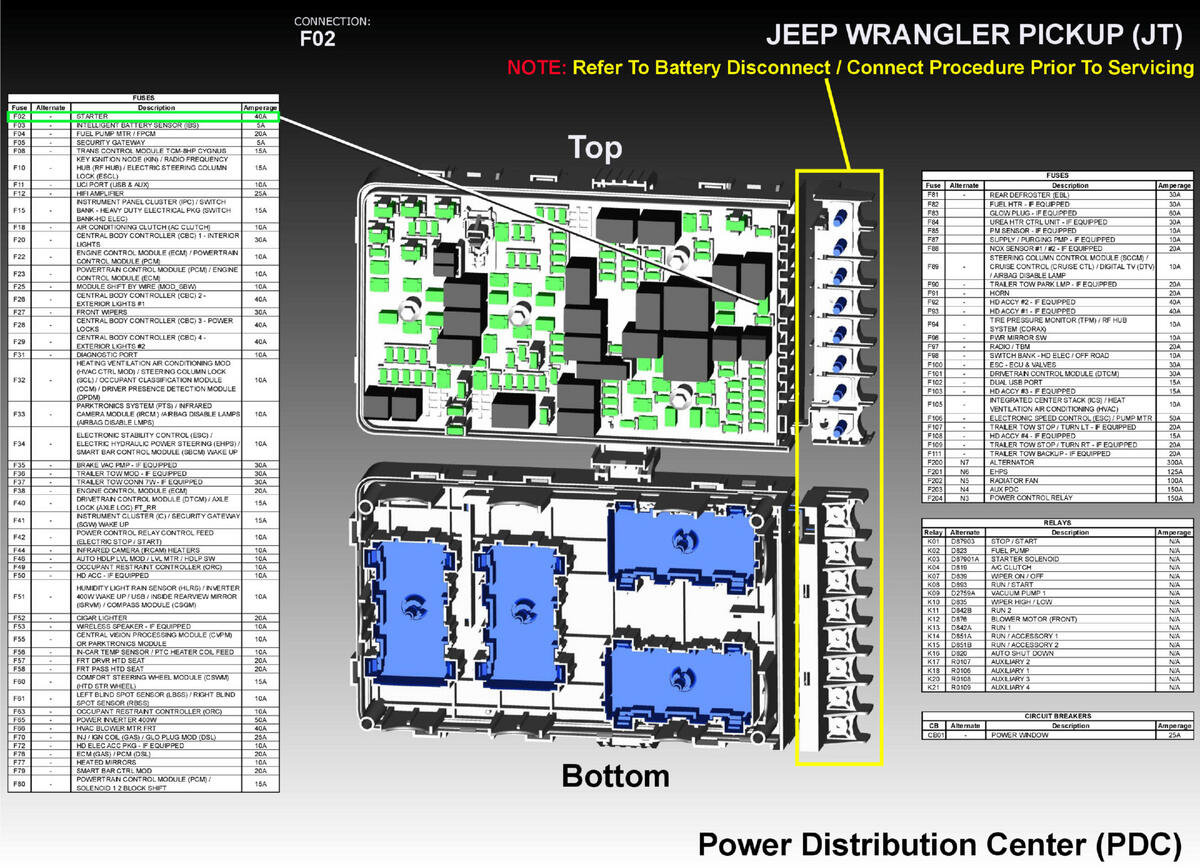

Fig 2: Fuse F02 40a Component Location View (Standard)
GCWD1318354Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A1 INTERNAL NA FUSED B(+) N/A
2 T750 INTERNAL NA STARTER RELAY OUTPUT N/A
