Fuse 2 50A (Standard) Connector End View (F0002UA)

Harness-Family: Aux_PDC_Underhood

Color: NA

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F0002UA

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse 2 50a Connector End View (Standard)
GCWD1006305Courtesy of CHRYSLER

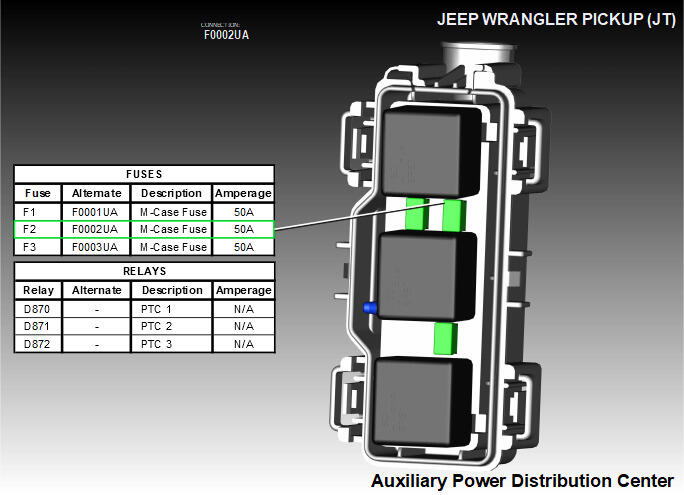

Fig 2: Fuse 2 50a Component Location View (Standard)
GCWD1319091Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A3 INTERNAL NA FUSED B(+) N/A
2 A289 INTERNAL NA FUSED B(+) N/A
