Fan-Radiator (Standard) Connector End View (D6632A)

Harness-Family: Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7287-1404-10

Part Description: Not Available

Connector No: D6632A

Option: Standard

Repair Kit Part Number: Not Serviceable

Cavity Count: 4

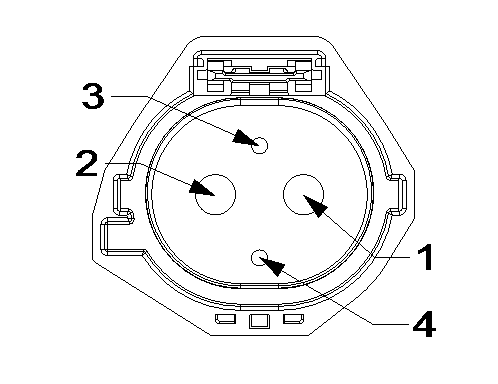

Fig 1: Fan-Radiator Connector End View (Standard)
GCWD1006360Courtesy of CHRYSLER

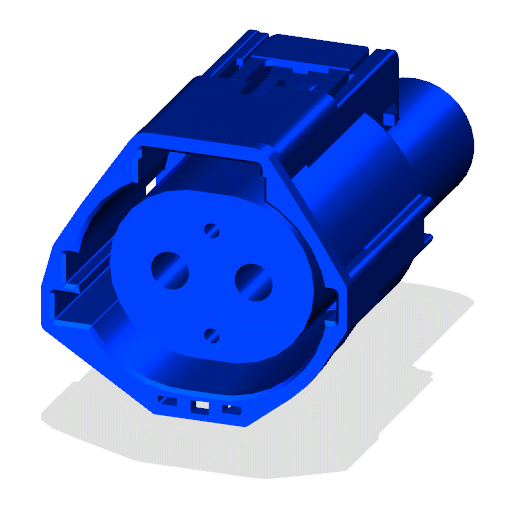

Fig 2: Fan-Radiator Isometric View (Standard)
GCWD1082569Courtesy of CHRYSLER

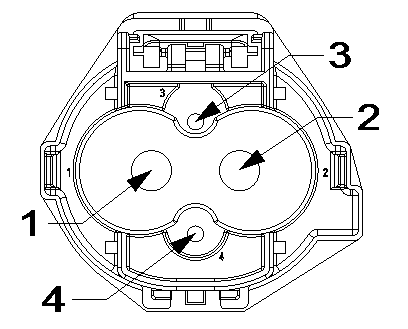

Fig 3: Fan-Radiator Wire Insertion View (Standard)
GCWD1009430Courtesy of CHRYSLER

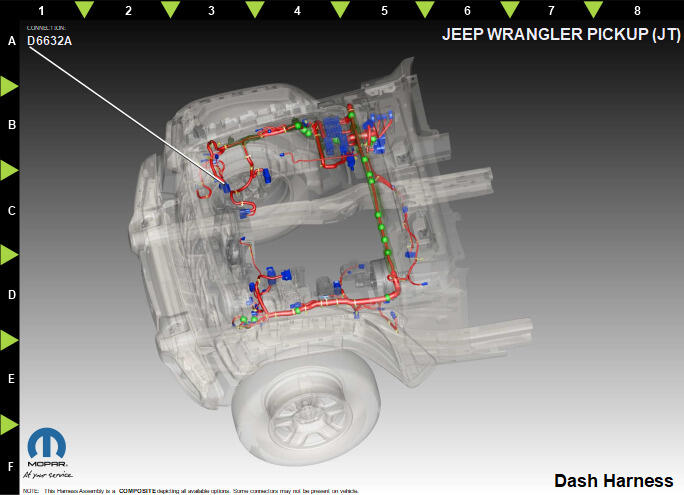

Fig 4: Fan-Radiator Component Location View (Standard)
GCWD1318283Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A13 RD/BN 12 FUSED B(+) N/A
2 Z904 BK 12 GROUND N/A
3 N0 NA 0 NO CONNECT N/A
4 K173 BN/VT 0.50 RADIATOR FAN CONTROL SIGNAL N/A
