Connector-Star Can IHS IP C2 (Standard) Connector End View (D2601B)

Harness-Family: IP

Color: GREEN

Gender: FEMALE

Part Number: 5-2138650-1

Part Description: Not Available

Connector No: D2601B

Option: Standard

Repair Kit Part Number: 68140676AA

Cavity Count: 2

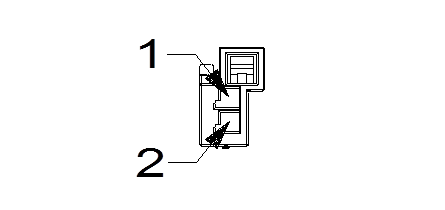

Fig 1: Connector-Star Can Ihs Ip C2 Connector End View (Standard)

Courtesy of CHRYSLER

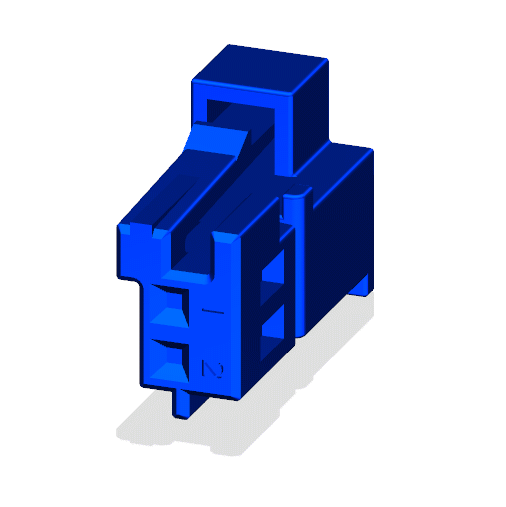

Fig 2: Connector-Star Can Ihs Ip C2 Isometric View (Standard)

Courtesy of CHRYSLER

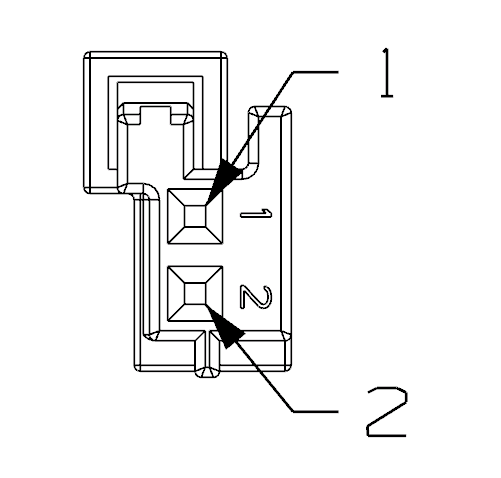

Fig 3: Connector-Star Can Ihs Ip C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Connector-Star Can Ihs Ip C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D145	WH/GN	0.35	CAN IHS (+)	N/A
2	D146	WH	0.35	CAN IHS (-)	N/A
