Connector-Star Can IHS Body C6 (Standard) Connector End View (D2602F)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 5-2138650-1

Part Description: Not Available

Connector No: D2602F

Option: Standard

Repair Kit Part Number: 68140676AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Body C6 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Connector-Star Can Ihs Body C6 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Connector-Star Can Ihs Body C6 Wire Insertion View (Standard)

Courtesy of CHRYSLER

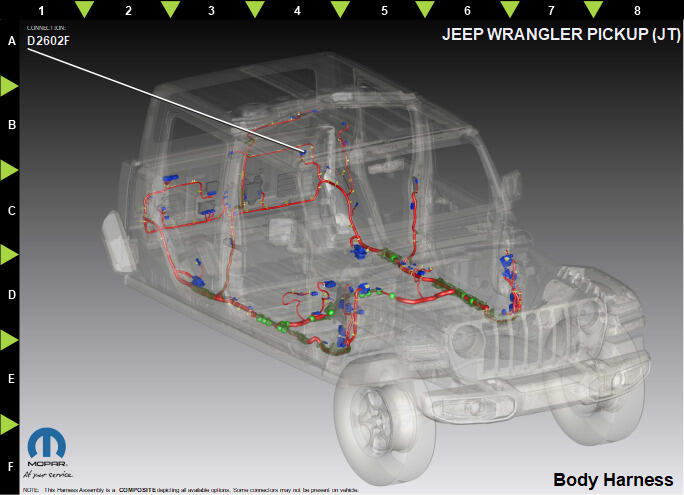

Fig 4: Connector-Star Can Ihs Body C6 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D263	DB	0.35	CAN IHS (+)	N/A
2	D262	WH/OG	0.35	CAN IHS (-)	N/A
