Connector-Star Can IHS Body C3 (Standard) Connector End View (D2602C)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 5-2138650-1

Part Description: Not Available

Connector No: D2602C

Option: Standard

Repair Kit Part Number: 68140676AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Body C3 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Connector-Star Can Ihs Body C3 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Connector-Star Can Ihs Body C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

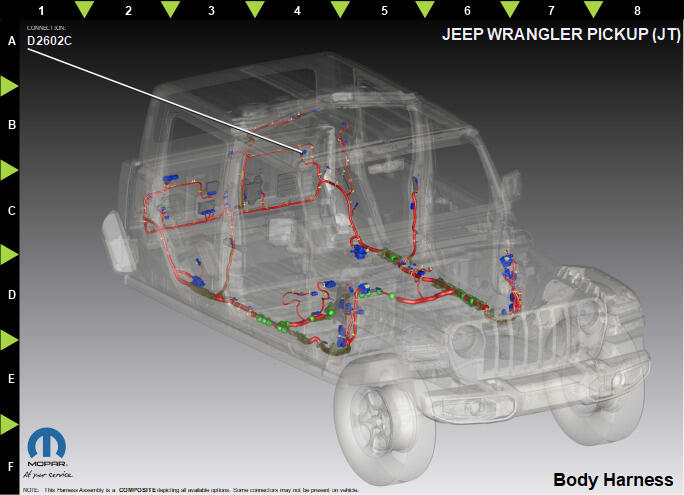

Fig 4: Connector-Star Can Ihs Body C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D217	DG/WH	0.35	CAN IHS (+)	N/A
2	D218	WH	0.35	CAN IHS (-)	N/A
