Connector-Star Can IHS Body C1 (Standard) Connector End View (D2602A)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 5-2138651-1

Part Description: Not Available

Connector No: D2602A

Option: Standard

Repair Kit Part Number: 68140677AA

Cavity Count: 3

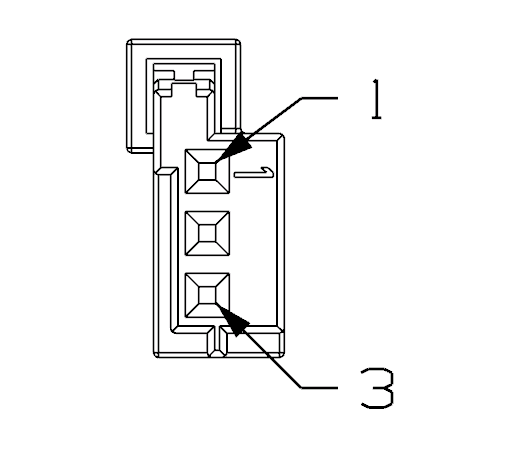

Fig 1: Connector-Star Can Ihs Body C1 Connector End View (Standard)

Courtesy of CHRYSLER

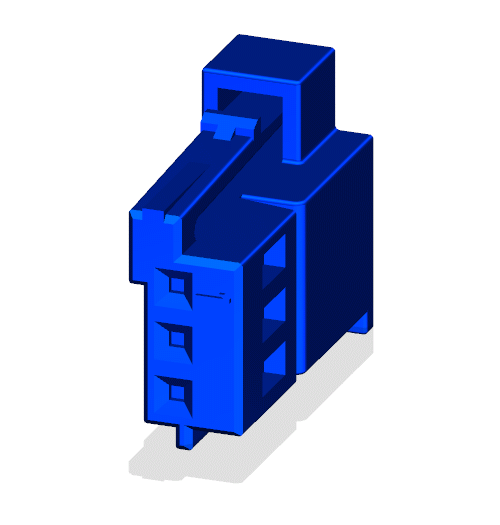

Fig 2: Connector-Star Can Ihs Body C1 Isometric View (Standard)

Courtesy of CHRYSLER

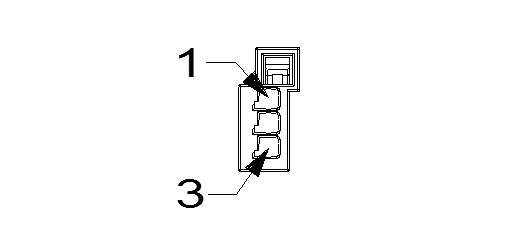

Fig 3: Connector-Star Can Ihs Body C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

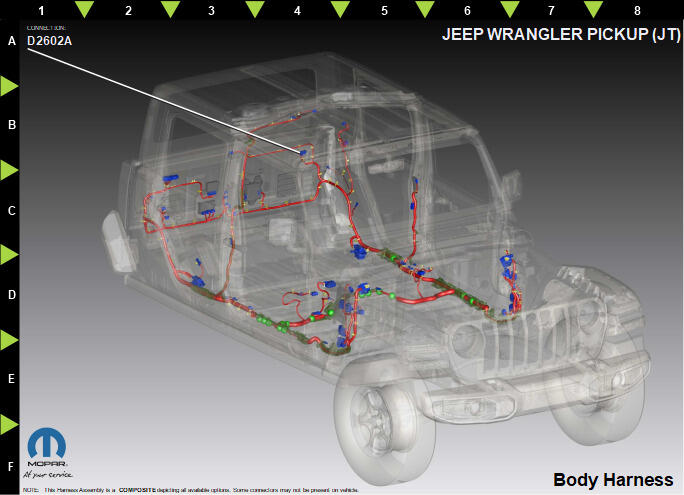

Fig 4: Connector-Star Can Ihs Body C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D17	OG	0.35	CAN IHS (+)	N/A
2	D18	WH/OG	0.35	CAN IHS (-)	N/A
3	Z915	BK	0.35	GROUND	N/A
