Connector-Star Can C IP C16 (Standard) Connector End View (D2599P)

Harness-Family: IP

Color: NATURAL

Gender: FEMALE

Part Number: 2-2138650-1

Part Description: Not Available

Connector No: D2599P

Option: Standard

Repair Kit Part Number: 68137881AA

Cavity Count: 2

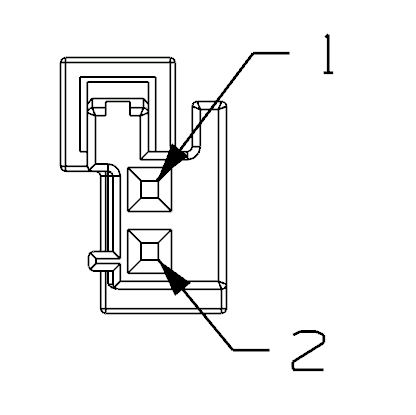

Fig 1: Connector-Star Can C Ip C16 Connector End View (Standard)
GCWD1006353Courtesy of CHRYSLER

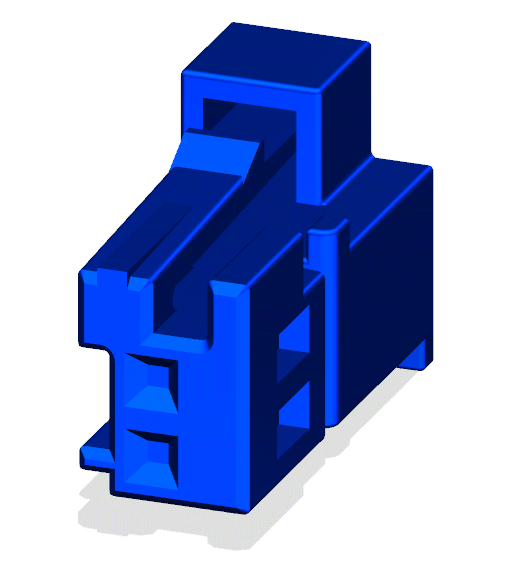

Fig 2: Connector-Star Can C Ip C16 Isometric View (Standard)
GCWD1086559Courtesy of CHRYSLER

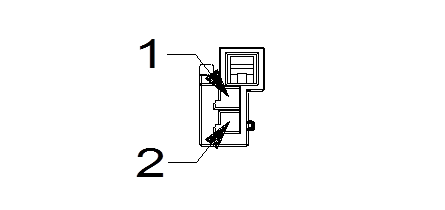

Fig 3: Connector-Star Can C Ip C16 Wire Insertion View (Standard)
GCWD1006686Courtesy of CHRYSLER
Fig 4: Connector-Star Can C Ip C16 Component Location View (Standard)
GCWD1318174Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D461 YE/GY 0.35 CAN C (+) N/A
2 D460 YE 0.35 CAN C (-) N/A
