Coil-Ignition 1 (Standard) Connector End View (D5203A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-121-521

Part Description: Not Available

Connector No: D5203A

Option: Standard

Repair Kit Part Number: 68364262AB

Cavity Count: 3

Fig 1: Coil-Ignition 1 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Coil-Ignition 1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Coil-Ignition 1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

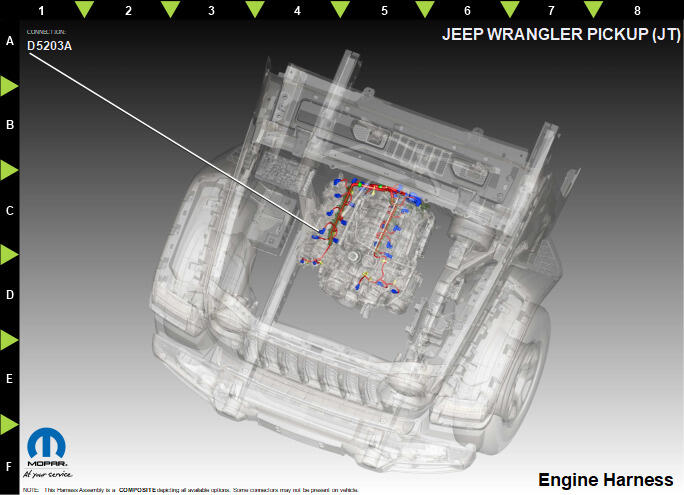

Fig 4: Coil-Ignition 1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K19	DB/DG	1.0	COIL CONTROL 1	N/A
2	F343	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
3	Z927	BK	0.35	GROUND	N/A
