XY231C (Standard) Connector End View (X231C)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 807-479-501

Part Description: Not Available

Connector No: X231C

Option: Standard

Repair Kit Part Number: 68475543AA

Cavity Count: 12

Fig 1: Xy231c Connector End View (Standard)

GCWD1238035

Courtesy of CHRYSLER

Fig 2: Xy231c Isometric View (Standard)

GCWD1308598

Courtesy of CHRYSLER

Fig 3: Xy231c Wire Insertion View (Standard)

GCWD1009577

Courtesy of CHRYSLER

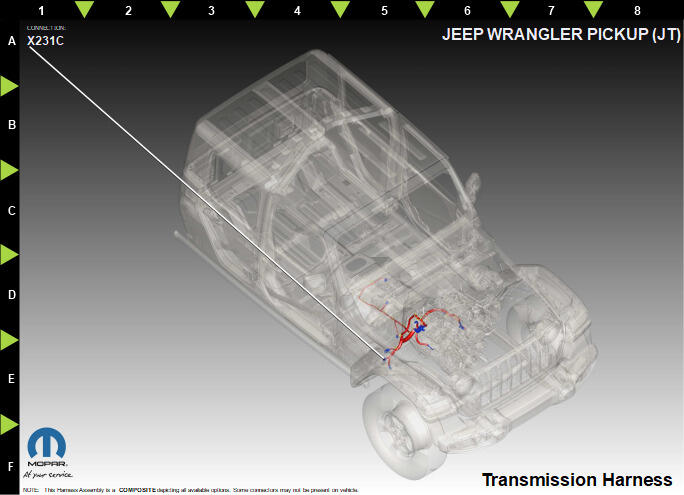

Fig 4: Xy231c Component Location View (Standard)

GCWD1318663

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K859	BN/DB	0.75	5 VOLT SUPPLY	N/A
2	T127	YE/GN	0.75	GEAR POSITION SENSOR SIGNAL 2	N/A
3	T122	DG	0.75	GEAR POSITION SENSOR SIGNAL	N/A
4	K917	BN/BG	0.35	SENSOR GROUND	N/A
5	K804	BN/GN	0.35	STOP START NEUTRAL SW SIG	N/A
6	K977	BN/WH	0.50	MODE SELECT	N/A
7	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
8	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
9	K181	BN/YE	0.35	FUEL PRESSURE SIGNAL	N/A
10	K917	BN/BG	0.75	SENSOR GROUND	N/A
11	T314	YE/BU	0.50	TRANSFER CASE RANGE POSITION SIGNAL	N/A
12	K917	BN/BG	0.35	SENSOR GROUND	N/A
