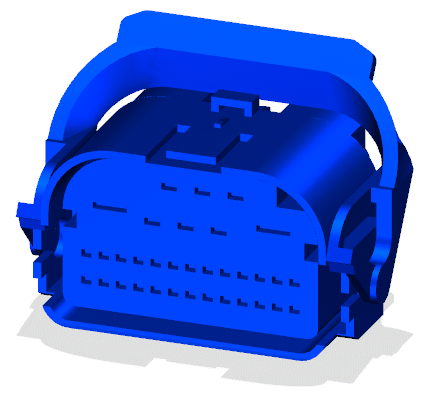

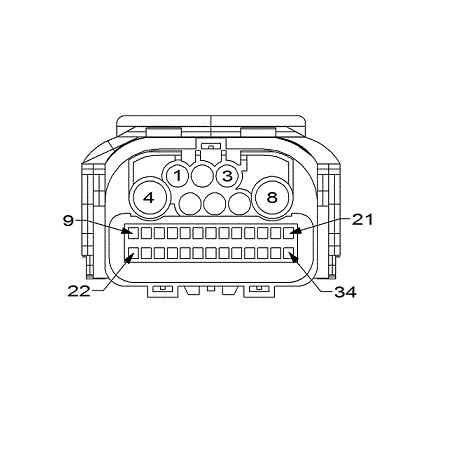

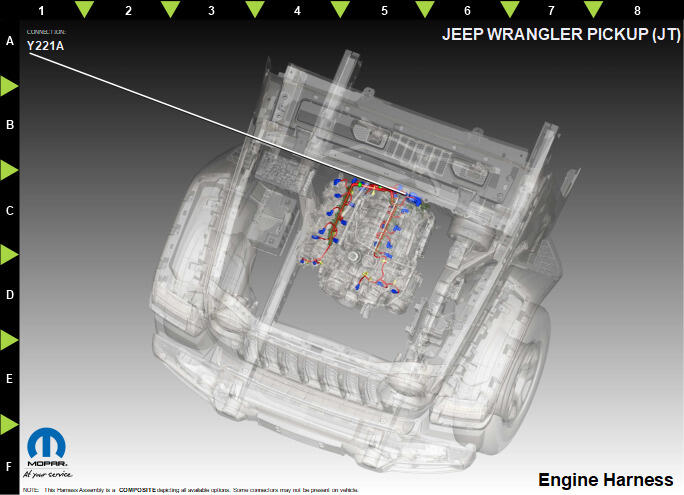

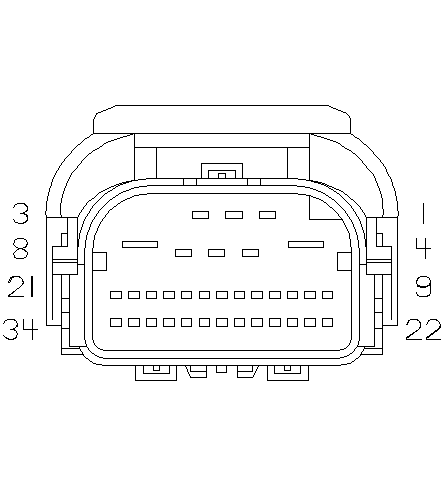

XY221A (Standard) Connector End View (Y221A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 1438841-1

Part Description: HYBRID PLUG ASSEMBLY

Connector No: Y221A

Option: Standard

Repair Kit Part Number: 68429700AA

Cavity Count: 34

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K19	DB/DG	1.0	COIL CONTROL 1	N/A
2	K17	DB/TN	1.0	COIL CONTROL 2	N/A
3	K18	DB/OG	1.0	COIL CONTROL 3	N/A
4	F343	BN/WH	1.0	FUSED ASD RELAY OUTPUT	N/A
5	K15	DB/GY	1.0	COIL CONTROL 4	N/A
6	K16	DB/YE	1.0	COIL CONTROL 5	N/A
7	K10	DB	1.0	COIL CONTROL 6	N/A
8	N0		NA	NO CONNECT	N/A
9	K13	BN/BU	0.75	INJECTOR 3 CONTROL	N/A
10	K38	BN/OG	0.75	INJECTOR 5 CONTROL	N/A
11	K276	DB/WH	0.35	CONTROL	N/A
12	K277	DB	0.35	CONTROL	N/A
13	K76	BN/WH	0.35	CONTROL	N/A
14	K78	BN	0.35	CONTROL	N/A
15	K11	BN/YE	0.75	INJECTOR 1 CONTROL	N/A
16	K531	VT	0.35	VVL SOLENOID 1/1 CONTROL	N/A
17	K532	VT/GY	0.35	VVL SOLENOID 1/2 CONTROL	N/A
18	K533	GY	0.35	VVL SOLENOID 2/1 CONTROL	N/A
19	K534	GY/YE	0.35	VVL SOLENOID 2/2 CONTROL	N/A
20	K58	BN/VT	0.75	INJECTOR 6 CONTROL	N/A
21	K900	DB/DG	0.35	SENSOR GROUND	N/A
22	K12	BN/DB	0.75	INJECTOR 2 CONTROL	N/A
23	K14	BN/TN	0.75	INJECTOR 4 CONTROL	N/A
24	K856	BN/YE	0.35	5 VOLT SUPPLY	N/A
25	K2	VT/OG	0.35	ECT SIGNAL	N/A
26	K444	DB/TN	0.35	CMP SENSOR SIGNAL 2/1	N/A
27	K445	DB	0.35	CMP SENSOR SIGNAL 2/2	N/A
28	K900	BN/WH	0.35	SENSOR GROUND	N/A
29	G24	VT/BN	0.35	EOT SIGNAL	N/A
30	K44	DB/GY	0.35	CMP SENSOR SIGNAL 1/1	N/A
31	K441	DB/BN	0.35	CMP SENSOR SIGNAL 1/2	N/A
32	K900	DB/DG	0.35	SENSOR GROUND	N/A
33	K900	DB/DG	0.35	SENSOR GROUND	N/A
34	K856	BN/YE	0.35	5 VOLT SUPPLY	N/A
