XY220A (Standard) Connector End View (Y220A)

Harness-Family: KOP_Jumper

Color: BLACK

Gender: MALE

Part Number: 807-443-511

Part Description: Not Available

Connector No: Y220A

Option: Standard

Repair Kit Part Number: 68502151AA

Cavity Count: 8

Fig 1: Xy220a Connector End View (Standard)
GCWD1011887Courtesy of CHRYSLER

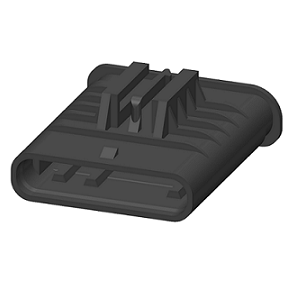

Fig 2: Xy220a Isometric View (Standard)
GCWD1012719Courtesy of CHRYSLER
Fig 3: Xy220a Wire Insertion View (Standard)
GCWD1010692Courtesy of CHRYSLER

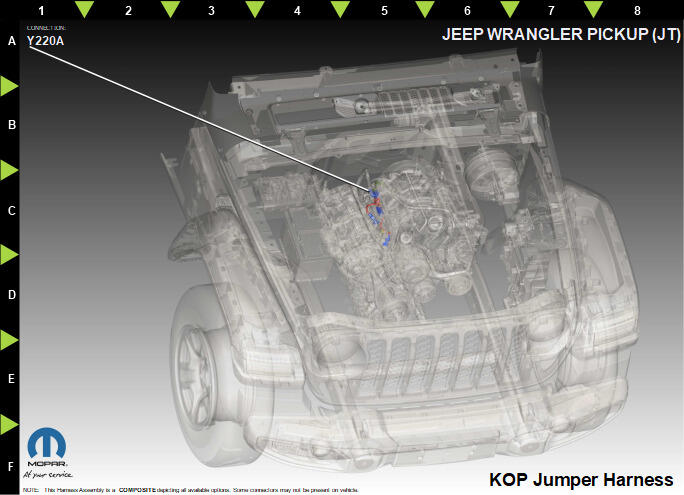

Fig 4: Xy220a Component Location View (Standard)
GCWD1318892Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 G6 VT 0.35 OIL PRESSURE SIGNAL N/A
2 N0   NA NO CONNECT N/A
3 K42 DB/YE 0.35 KS 1 SIGNAL N/A
4 K855 BN/OG 0.35 5 VOLT SUPPLY N/A
5 K242 BN/WH 0.35 KS 2 SIGNAL N/A
6 K900 BN/GY 0.35 SENSOR GROUND N/A
7 K924 WH 0.35 KS 2 RETURN N/A
8 K942 BN/GN 0.35 KS 1 RETURN N/A
