XY220A (Standard) Connector End View (X220A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 807-442-521

Part Description: Not Available

Connector No: X220A

Option: Standard

Repair Kit Part Number: 68528143AA

Cavity Count: 8

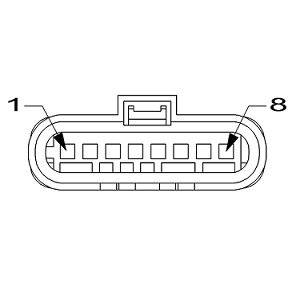

Fig 1: Xy220a Connector End View (Standard)

GCWD1014378

Courtesy of CHRYSLER

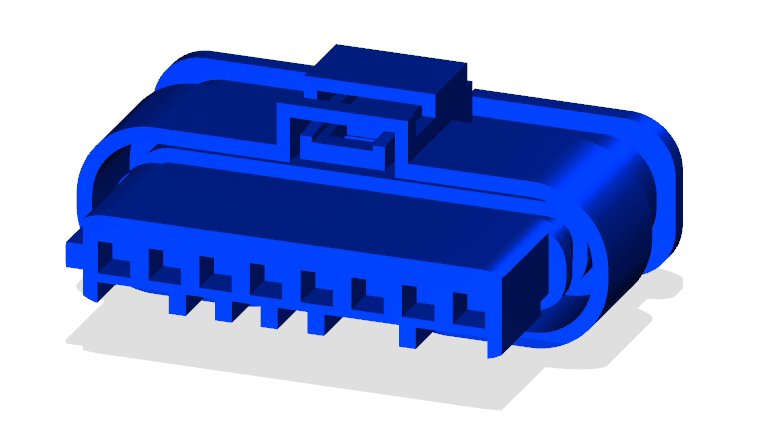

Fig 2: Xy220a Isometric View (Standard)

GCWD1011194

Courtesy of CHRYSLER

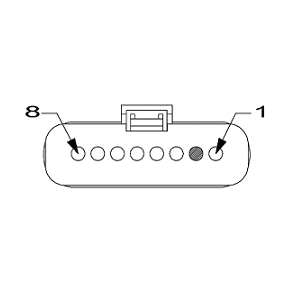

Fig 3: Xy220a Wire Insertion View (Standard)

GCWD1007653

Courtesy of CHRYSLER

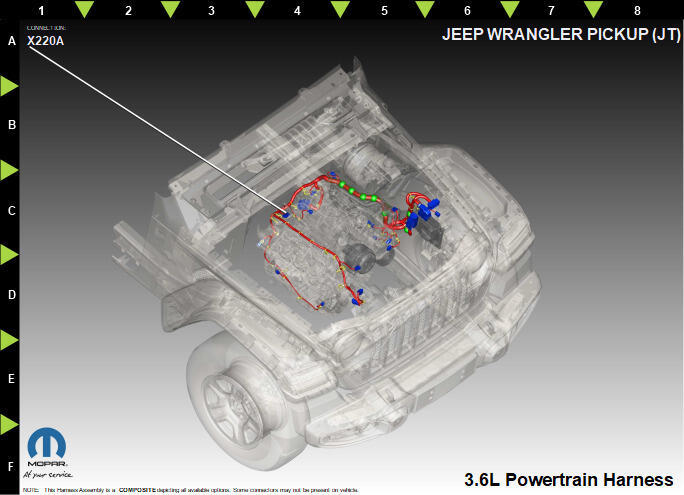

Fig 4: Xy220a Component Location View (Standard)

GCWD1318176

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G60	VT/YE	0.75	EOP SIGNAL 2	N/A
2	N0	NA	0	NO CONNECT	N/A
3	K42	DB/YE	0.35	KS 1 SIGNAL	N/A
4	F855	PK/YE	0.35	5 VOLT SUPPLY	N/A
5	K242	BN/WH	0.35	KS 2 SIGNAL	N/A
6	K900	DB/DG	0.35	SENSOR GROUND	N/A
7	K924	WH/BN	0.35	KS 2 RETURN	N/A
8	K942	BN/GN	0.35	KS 1 RETURN	N/A
