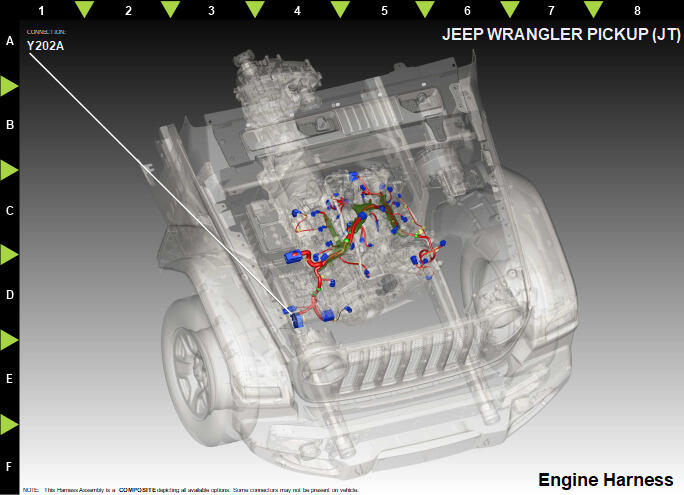

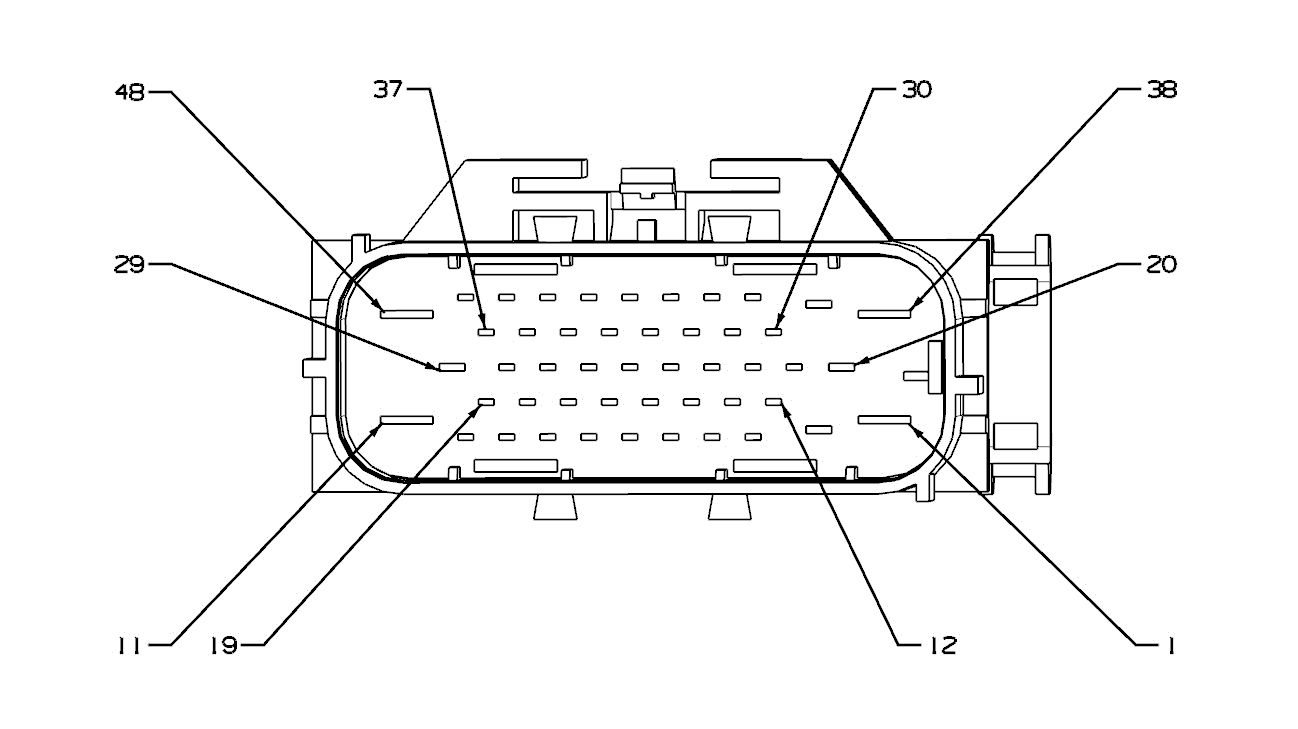

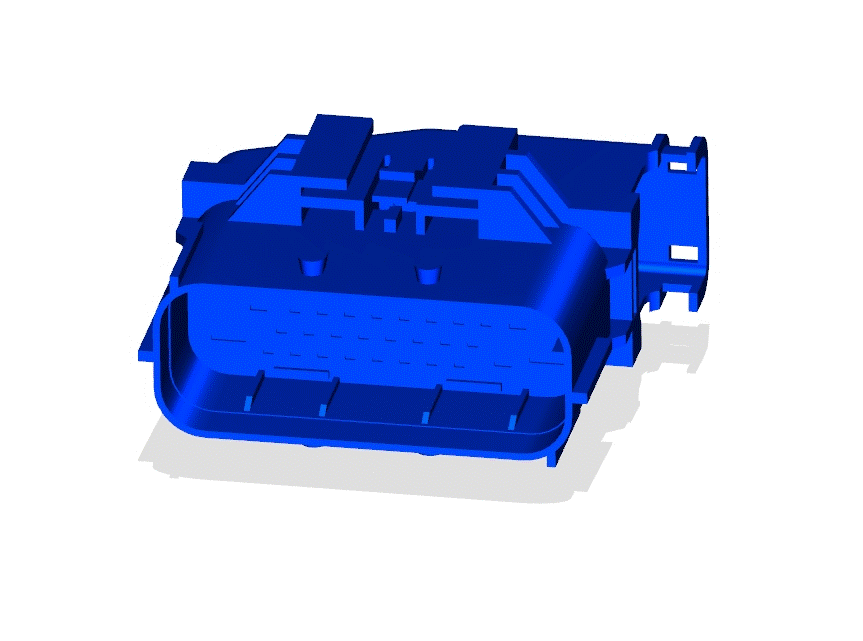

XY202A (Standard) Connector End View (Y202A)

Harness-Family: Engine_Diesel1

Color: GRAY

Gender: MALE

Part Number: 15513437_15513425

Part Description: Not Available

Connector No: Y202A

Option: Standard

Repair Kit Part Number: 68475537AB

Cavity Count: 48

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F343	RD	2.5	FUSED ASD RELAY OUTPUT	N/A
2	K675	OG/BK	1.0	MOTOR (+)	N/A
3	K676	DB	1.0	MOTOR (-)	N/A
4	K385	DB/GN	0.50	SENSOR GROUND	N/A
5	K482	BK/DB	0.75	DEF SUPPLY PUMP CONTROL	N/A
6	K414	GN/BK	0.50	DEF LEVEL/TEMP SIGNAL	N/A
7	K420	YE/GN	0.50	DEF LEVEL/TEMP RETURN	N/A
8	K428	BN/VT	0.75	DEF INJECTOR POSITIVE	N/A
9	K426	BN/WH	0.75	DEF INJECTOR NEGATIVE	N/A
10	K481	GY/RD	0.75	DEF PURGE PUMP CONTROL	N/A
11	Z909	BK	1.5	GROUND	N/A
12	K952	BK/RD	0.50	SENSOR RETURN	N/A
13	K489	YE/RD	0.50	SENSOR SIGNAL	N/A
14	F860	RD/GN	0.50	5-VOLT SUPPLY	N/A
15	N116	BK/VT	0.75	CRANKCASE VENT HEATER CONTROL	N/A
16	K384	OG	0.50	EGT SIGNAL	N/A
17	K900	VT/WH	0.50	SENSOR GROUND	N/A
18	K372	OG/WH	0.50	EGT SIGNAL	N/A
19	K662	BK/DB	0.50	SENSOR RETURN	N/A
20	F854	VT/RD	0.50	5 VOLT SUPPLY	N/A
21	K665	WH/YE	0.50	SENSOR SIGNAL	N/A
22	K137	BN/WH	0.75	WASTEGATE POSITION SIGNAL	N/A
23	D468	BN/VT	0.50	PRIVATE CAN (-)	N/A
24	D469	DB/RD	0.50	PRIVATE CAN (+)	N/A
25	K302	YE/RD	0.75	CRANKCASE PRESSURE SENSOR SIGNAL	N/A
26	K936	BK/RD	0.75	EOP SENSOR GROUND	N/A
27	K860	RD/VT	0.75	5 VOLT SUPPLY	N/A
28	D509	OG	0.50	LIN BUS	N/A
29	K24	VT/WH	0.50	CKP SIGNAL	N/A
30	K853	BK/RD	0.50	CRANK POS 5 VOLT SUPPLY	N/A
31	K925	GY	0.50	CKP GROUND	N/A
40	K142	DB	0.50	MASS AIR FLOW SIGNAL 2	N/A
41	Z909	BK	0.50	GROUND	N/A
42	C3	BN/GN	0.75	A/C CLUTCH CONTROL OUTPUT	N/A
43	Z907	GY/RD	0.75	GROUND	N/A
44	Z907	BN/GN	0.75	GROUND	N/A
45	C27	GY/RD	0.75	A/C COMPRESSOR CONTROL	N/A
