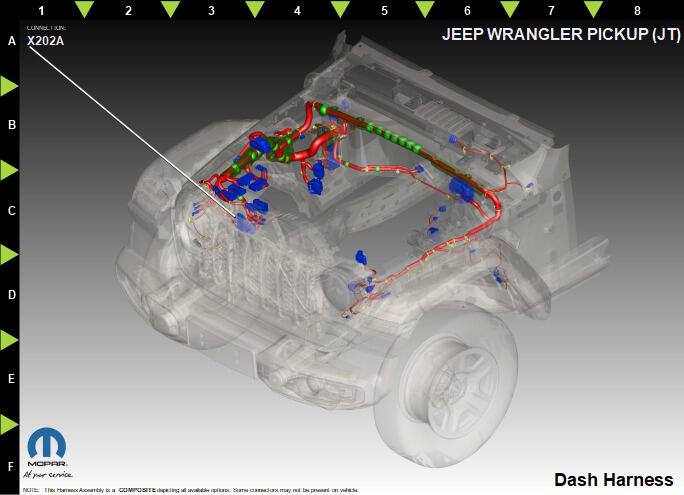

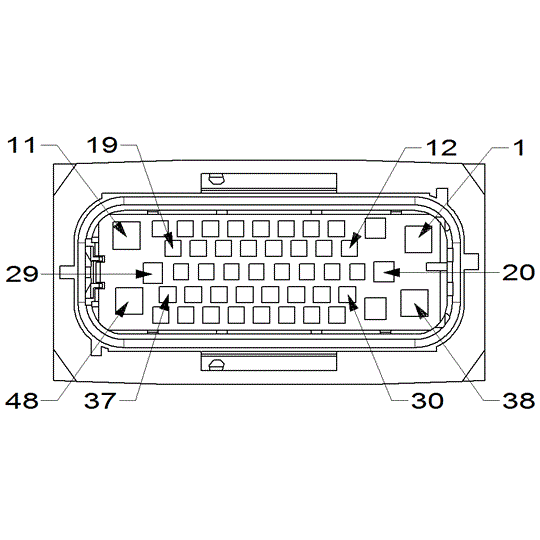

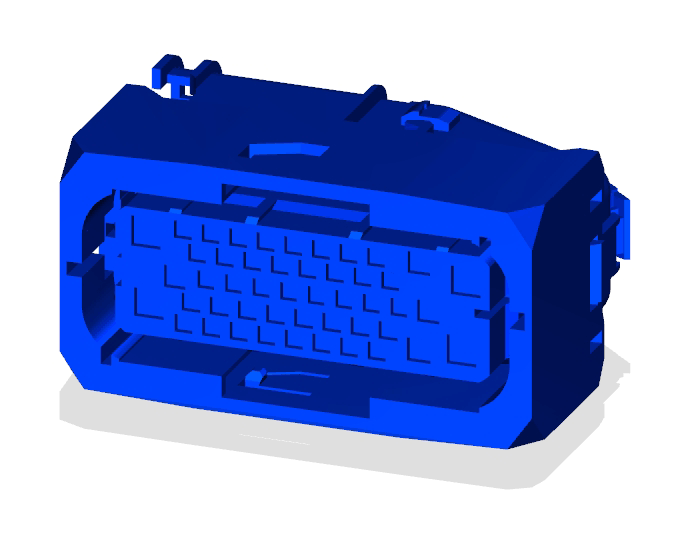

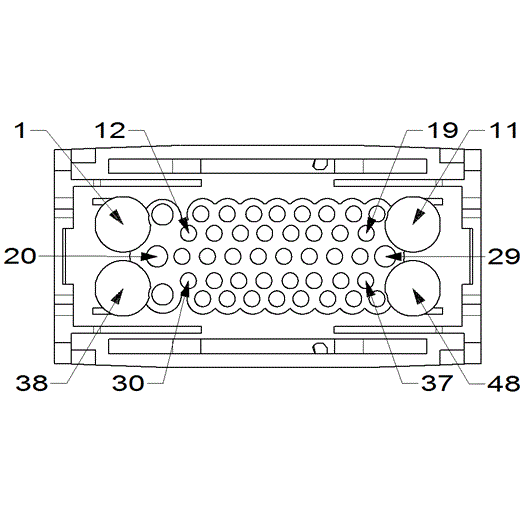

XY202A (Standard) Connector End View (X202A)

Harness-Family: Dash

Color: GRAY

Gender: FEMALE

Part Number: 15511752_15509587

Part Description: Not Available

Connector No: X202A

Option: Standard

Repair Kit Part Number: 68498878AA

Cavity Count: 48

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F343	BN/YE	2.0	FUSED ASD RELAY OUTPUT	N/A
2	K675	BN	0.75	MOTOR (+)	N/A
3	K676	BG/BN	1.0	MOTOR (-)	N/A
4	K385	BN/YE	0.35	SENSOR GROUND	N/A
5	K482	BN	0.75	DEF SUPPLY PUMP CONTROL	N/A
6	K414	BN/YE	0.35	DEF LEVEL/TEMP SIGNAL	N/A
7	K420	DB/OG	0.50	DEF LEVEL/TEMP RETURN	N/A
8	K428	DB	0.75	DEF INJECTOR POSITIVE	N/A
9	K426	DB/GN	0.75	DEF INJECTOR NEGATIVE	N/A
10	K481	BN/GY	0.75	DEF PURGE PUMP CONTROL	N/A
11	Z909	BK	1.5	GROUND	N/A
12	K952	BN/BU	0.35	SENSOR RETURN	N/A
13	K489	DB/GY	0.35	SENSOR SIGNAL	N/A
14	F860	BN/PK	0.35	5-VOLT SUPPLY	N/A
15	N116	DB	0.75	CRANKCASE VENT HEATER CONTROL	N/A
16	K384	BN/YE	0.35	EGT SIGNAL	N/A
17	K900	DB/DG	0.35	SENSOR GROUND	N/A
18	K372	BN/DG	0.35	EGT SIGNAL	N/A
19	K662	VT/GY	0.35	SENSOR RETURN	N/A
20	F854	GY/PK	0.35	5 VOLT SUPPLY	N/A
21	K665	BN/YE	0.35	SENSOR SIGNAL	N/A
22	K137	DB/OG	0.75	WASTEGATE POSITION SIGNAL	N/A
23	D468	GY/WH	0.35	PRIVATE CAN (-)	N/A
24	D469	GY	0.35	PRIVATE CAN (+)	N/A
25	K302	BN/WH	0.50	CRANKCASE PRESSURE SENSOR SIGNAL	N/A
26	K936	BN/YE	0.50	EOP SENSOR GROUND	N/A
27	K860	WH/BN	0.50	5 VOLT SUPPLY	N/A
28	D509	WH/OG	0.35	LIN BUS	N/A
29	K24	BN/BU	0.50	CKP SIGNAL	N/A
30	K853	DB/BN	0.50	CRANK POS 5 VOLT SUPPLY	N/A
31	K925	DB/GY	0.50	CKP GROUND	N/A
32	N0	NA	0	NO CONNECT	N/A
33	N0	NA	0	NO CONNECT	N/A
34	N0	NA	0	NO CONNECT	N/A
35	N0	NA	0	NO CONNECT	N/A
36	N0	NA	0	NO CONNECT	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	K142	DB/BU	0.35	MASS AIR FLOW SIGNAL 2	N/A
41	Z909	BK	0.50	GROUND	N/A
42	C3	DB/YE	0.75	A/C CLUTCH CONTROL OUTPUT	N/A
43	Z907	BK	0.75	GROUND	N/A
44	Z907	BK	0.75	GROUND	N/A
45	C27	BU/WH	0.50	A/C COMPRESSOR CONTROL	N/A
46	N0	NA	0	NO CONNECT	N/A
47	N0	NA	0	NO CONNECT	N/A
48	N0	NA	0	NO CONNECT	N/A
