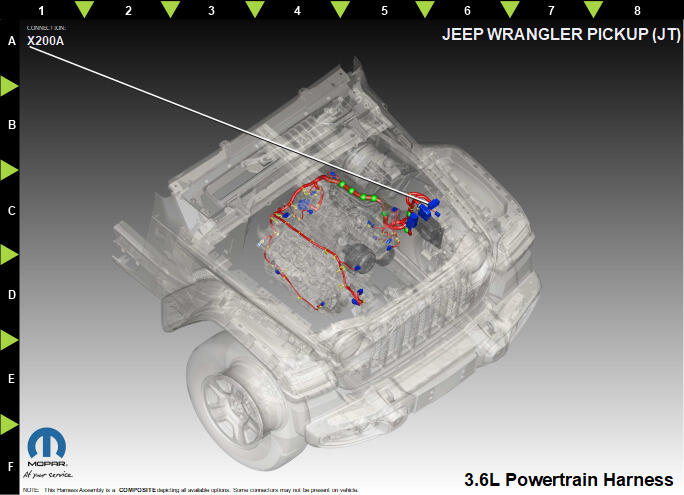

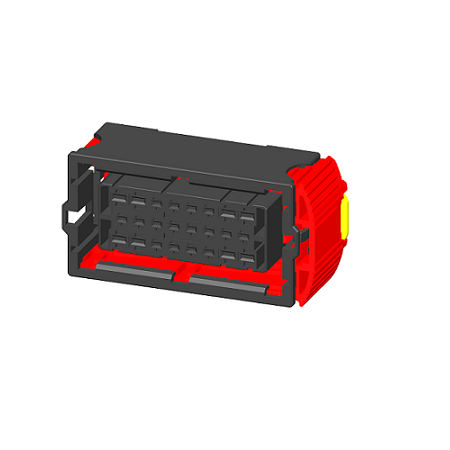

XY200A (Standard) Connector End View (X200A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 1745043-5

Part Description: Not Available

Connector No: X200A

Option: Standard

Repair Kit Part Number: 68248201AA

Cavity Count: 24

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T108	DG/VT	2.0	VACUUM PUMP RELAY OUTPUT	N/A
2	C3	DB/YE	0.50	A/C CLUTCH CONTROL OUTPUT	N/A
3	T753	DG/YE	0.50	IGNITION CRANK SENSE	EXCEPT GPEC5
3	A804	RD/VT	0.75	GEN SENSE	GPEC5
4	C27	BU/WH	0.50	A/C COMPRESSOR CONTROL	N/A
5	K141	DB/YE	0.75	O2 1/2 SIGNAL	GPEC5
5	K33	DB/GN	0.75	2ND GEAR LOCK-OUT CONTROL	MANUAL TRANS
6	K333	DB/BU	0.75	1ST GEAR LOCK-OUT CONTROL	MANUAL TRANS
6	K199	BN/VT	0.75	O2 2/1 HEATER CONTROL	GPEC5
7	Z909	BK	0.75	GROUND	N/A
8	Z907	BK	2.0	GROUND	N/A
9	N0	NA	0	NO CONNECT	N/A
10	K99	BN/GN	0.50	O2 1/1 HEATER CONTROL	EXCEPT GPEC5
10	K20	BN/GY	0.75	GEN FIELD CONTROL	GPEC5
11	K902	BN/DG	0.50	O2 RETURN (UPSTREAM)	N/A
12	K21	DB/GN	0.75	IAT SIGNAL	EXCEPT GPEC5
12	K299	BN/WH	0.75	O2 1/2 HEATER CONTROL	GPEC5
13	T127	YE/GN	0.50	GEAR POSITION SENSOR SIGNAL 2	MANUAL TRANS
13	K399	BN/GY	0.75	O2 2/2 HEATER CONTROL	GPEC5
14	N0	NA	0	NO CONNECT	EXCEPT GPEC5
14	K904	DB/DG	0.75	O2 RETURN (DOWNSTREAM)	GPEC5
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	F343	BN/YE	2.0	FUSED ASD RELAY OUTPUT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	K52	DB/WH	0.50	EVAP PURGE CONTROL	N/A
20	K41	DB/BU	0.50	O2 1/1 SIGNAL	N/A
21	K900	DB/DG	0.50	SENSOR GROUND	EXCEPT GPEC5
21	K904	DB/DG	0.75	O2 RETURN (DOWNSTREAM)	GPEC5
22	T762	DG/YE	0.75	PCR CONTROL RELAY CONTROL	EXCEPT GPEC5
22	K243	BN	0.75	O2 2/2 SIGNAL	GPEC5
23	Z909	BK	0.75	GROUND	N/A
24	Z909	BK	0.75	GROUND	N/A
