XY103A (Standard) Connector End View (X103A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 284848-1

Part Description: Not Available

Connector No: X103A

Option: Standard

Repair Kit Part Number: 68335238AA

Cavity Count: 12

Fig 1: Xy103a Connector End View (Standard)

GCWD1010765

Courtesy of CHRYSLER

Fig 2: Xy103a Isometric View (Standard)

GCWD1012806

Courtesy of CHRYSLER

Fig 3: Xy103a Wire Insertion View (Standard)

GCWD1008789

Courtesy of CHRYSLER

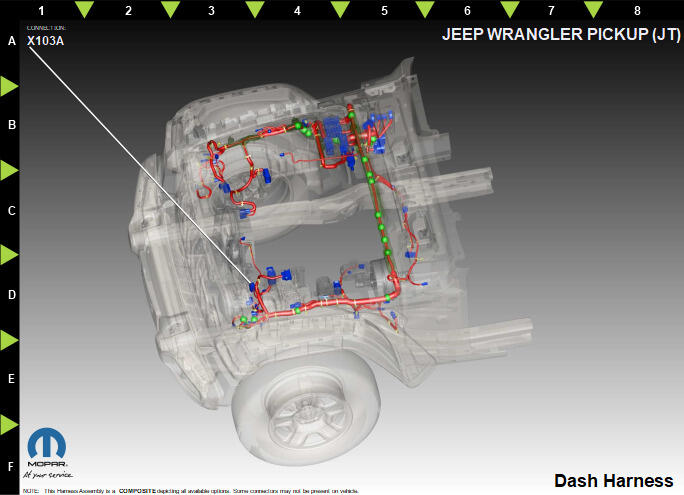

Fig 4: Xy103a Component Location View (Standard)

GCWD1318832

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	X21	GY/YE	1.0	FUSED HORN CONTROL OUTPUT	N/A
2	N0	NA	0	NO CONNECT	N/A
3	G70	VT/BU	0.35	HOOD AJAR SWITCH SENSE	N/A
4	K806	DB/BN	0.50	HOOD AJAR SWITCH 2	N/A
5	G931	VT/BN	0.35	SENSOR GROUND	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	G31	VT/GN	0.35	AAT SIGNAL	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	K917	BN/BG	0.50	SENSOR GROUND	3.6L GAS
11	K917	BN/BG	0.35	SENSOR GROUND	3.0L DIESEL
12	Z907	BK/YE	1.0	GROUND	N/A
