XY101B (Standard) Connector End View (X101B)

Harness-Family: FRONT BUMPER

Color: BLACK

Gender: FEMALE

Part Number: 284848-1

Part Description: Not Available

Connector No: X101B

Option: Standard

Repair Kit Part Number: 68335238AA

Cavity Count: 12

Fig 1: Xy101b Connector End View (Standard)

GCWD1010765

Courtesy of CHRYSLER

Fig 2: Xy101b Isometric View (Standard)

GCWD1012806

Courtesy of CHRYSLER

Fig 3: Xy101b Wire Insertion View (Standard)

GCWD1008789

Courtesy of CHRYSLER

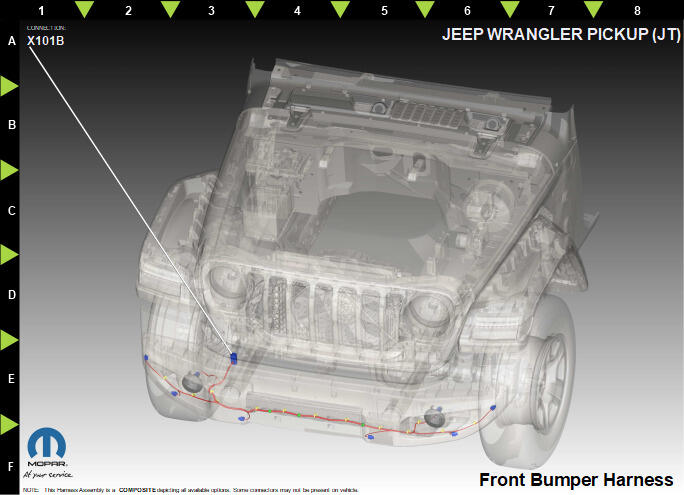

Fig 4: Xy101b Component Location View (Standard)

GCWD1318279

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L90	WH/OG	0.75	RIGHT FRONT FOG LAMP CONTROL	N/A
2	X702	GY/BU	0.50	FRONT PARK ASSIST SENSOR SUPPLY	N/A
3	D709	WH/BN	0.50	PARK ASSIST SIGNAL 6	N/A
4	D707	WH/GN	0.50	PARK ASSIST SIGNAL 4	N/A
5	D708	WH/BU	0.50	PARK ASSIST SIGNAL 5	N/A
6	N0	NA	0	NO CONNECT	N/A
7	L89	WH/YE	0.75	LEFT FRONT FOG LAMP CONTROL	N/A
8	D706	WH/BG	0.50	PARK ASSIST SIGNAL 3	N/A
9	X751	GY	0.50	FRONT PARK ASSIST SENSOR GROUND	N/A
10	D702	WH/YE	0.50	PARK ASSIST SIGNAL 1	N/A
11	D705	WH/OG	0.50	PARK ASSIST SIGNAL 2	N/A
12	Z906	BK	1.0	GROUND	N/A
