XY101A (Standard) Connector End View (Y101A)

Harness-Family: FRONT BUMPER

Color: DARK GRAY

Gender: MALE

Part Number: 7282-5570-10

Part Description: 2.8 YESC SEALED MALE SUB ASSEMBLY

Connector No: Y101A

Option: Standard

Repair Kit Part Number: 68528134AA

Cavity Count: 4

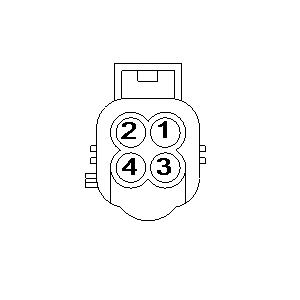

Fig 1: Xy101a Connector End View (Standard)

Courtesy of CHRYSLER

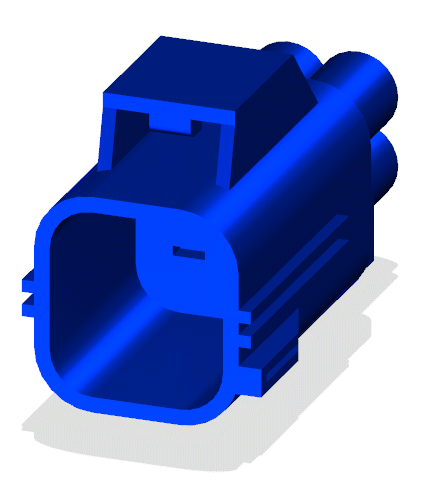

Fig 2: Xy101a Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Xy101a Wire Insertion View (Standard)

Courtesy of CHRYSLER

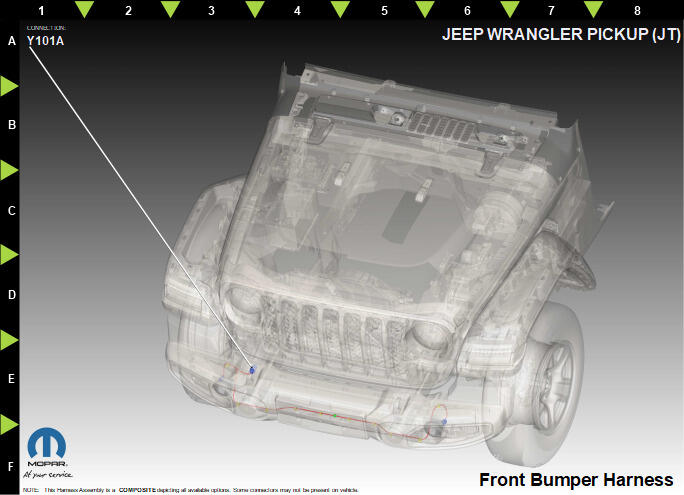

Fig 4: Xy101a Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	L90	WH/OG	0.75	RIGHT FRONT FOG LAMP CONTROL	N/A
2	L89	WH/YE	0.75	LEFT FRONT FOG LAMP CONTROL	N/A
3	Z906	BK	1.0	GROUND	N/A
4	N0	NA	0	NO CONNECT	N/A
