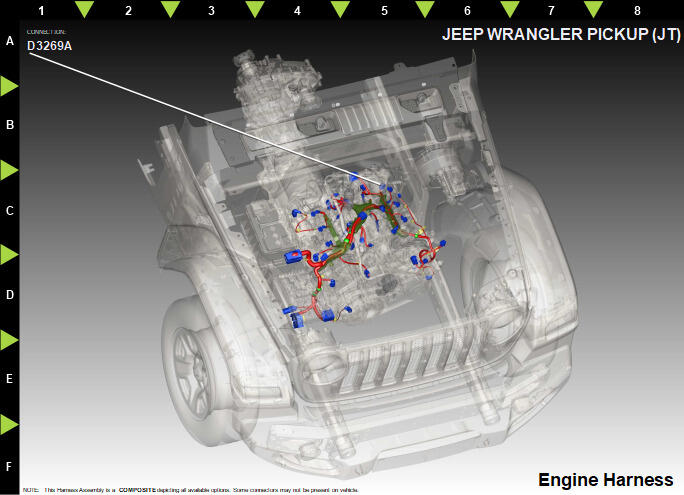

Valve-LP EGR (Standard) Connector End View (D3269A)
Harness-Family: Engine_Diesel1
Color: BROWN
Gender: FEMALE
Part Number: 1/07797/98
Part Description: Not Available
Connector No: D3269A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | F859 | BN/WH | 0.75 | 5-VOLT SUPPLY | N/A |
| 2 | K678 | BK/VT | 1.0 | MOTOR (-) | N/A |
| 3 | K685 | BN/GN | 0.75 | SENSOR SIGNAL | N/A |
| 5 | K662 | BK/WH | 0.75 | SENSOR RETURN | N/A |
| 6 | K677 | VT | 1.0 | MOTOR (+) | N/A |
